SAFETY & CONVENIENCE 8000 Series Air Carts



Save Time with Peace of Mind

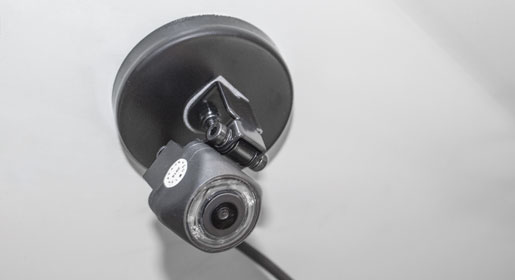

In-Tank CAMERA


Keep a watchful eye on tank contents and traffic behind the cart.

Keep a watchful eye on tank contents and traffic behind the cart with this optional stand-alone camera system:

  • Display in the cab is on a 7" LCD screen;
  • each tank is equipped with a separate camera to monitor product levels;
  • in-tank LED lights improve image quality, allowing product levels to be more easily distinguished.

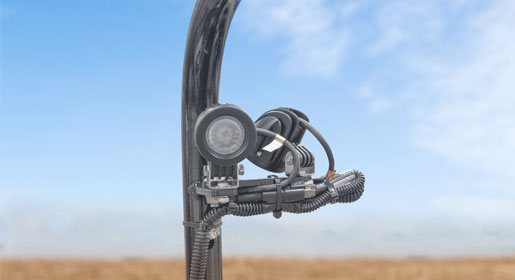

EXTERIOR WORKING LIGHTS


Convenient Option for Working at Night

Convenient Option for Working at Night

  • Five, LED exterior tank lights on the 8350 and 8450, and six on the 8550 allow for greater visibility when working at night.



Tank Lid Locks


Lid locks prevent accidental opening when tank is pressurized.

Tank lids are equipped with a catch to prevent the lid from striking the Operator if the lid is accidently opened while the fans are in operation.

Warning Decal - Tank Pressurized



EZ™ Hitch


The EZ Hitch option will greatly improve ease of implement hook up.

Be "Close Enough" When Connecting Your Air Cart

The EZ™ Hitch option will greatly improve ease of implement hook up. You can pin your air cart to the seed drill quickly and without frustration.

The EZ Hitch option will greatly improve ease of implement hook up.

The procedure to use the EZ™ Hitch is simple:
  • Swivel the hitch clevis by removing the lynch pin and pull pin from the front hole in the clevis.
  • Slide the hitch clevis to the position required. Connect the hitch tongue to the tillage implement hitch with the hitch pin.
  • Pull the air cart ahead a short distance to straighten out the clevis, then back up the tractor until the guide lock snaps into place.
  • Replace the pull pin and lynch pin in the front bushing of the clevis.
Read More

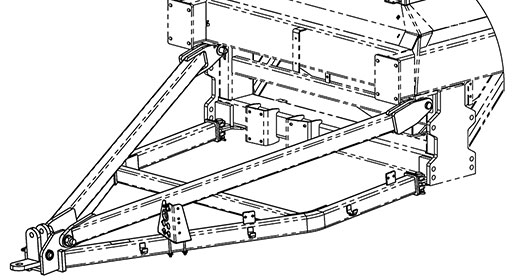

The Rear Tow Hitch


Rear Tow Hitch - 8000 Series Air Seeder

Add Liquid or NH3 Fertilizer Capacity

  • An optional Rear Tow Hitch is available for pulling a liquid caddy or an Anhydrous Ammonia tank.
  • Hydraulic plumbing options are also available for powering hydraulic drive pumps, or a winching package to bring the cart to the hitch.

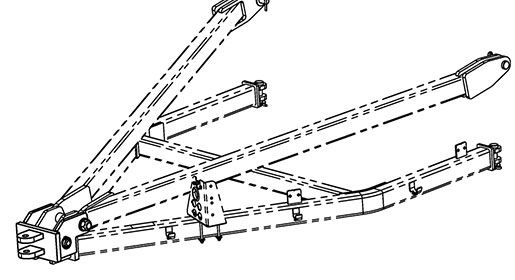

Rear Tow Hitch - Fixed Tongue

Fixed Clevis Option

Choose the fixed clevis option if the cart being towed is equipped with a swivel tongue.

Read More
