5000 Series Air CartsPast Performers



Years In Service

1999 - 2006 (refer to main chart for exact ranges per model)

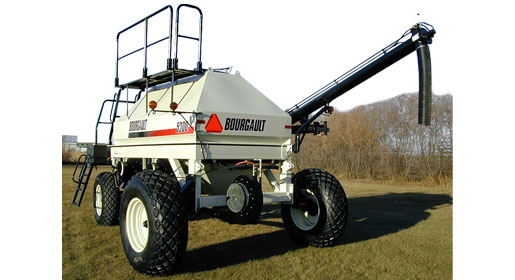

5000 Series Air Seeders

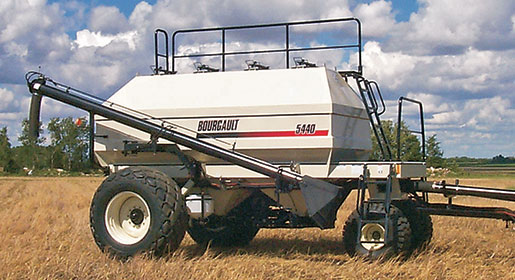

Model 5440 Air Seeder

Models 5200, 5250, 5300, 5350 & 5440
Models 5195, 5245, 5295, & 5345 (Australian Line)

  • Variable Speed Transmission
  • Cab Rate Adjust and Zone Rate Control
  • PDM Plus positive displacement metering
  • 491 Deluxe Monitor

All 5000 Series Air Seeders except the 5440 were released in Leading or Tow Behind configurations.

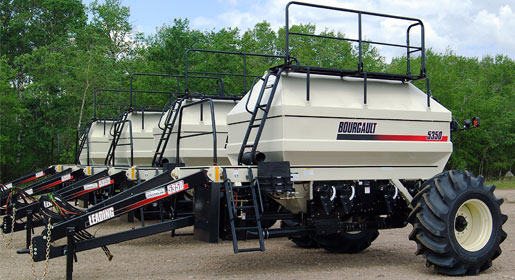

5000 Series Air Seeders were released in Leading or Tow Behind configurations
  • Variable Speed Transmission - The Variable Speed Transmission drives allows the output rate to be adjusted by turning the crank at the top of the box. The heavy-duty design & shear pin protection ensure that the transmission will provide trouble free operation.
  • CRA - Cab Rate Adjust, and ZRC - Zone Rate Control systems provided quick and convenient metering rate
    adjustments on-the-go from the tractor cab.
  • PDM Plus Metering System - The 5000 Air Seeder featured the PDM Plus positive displacement metering system. This system is highly accurate, even with fine seeds. The sump can be opened for complete tank clean-out and metering auger inspection.
  • 491 Deluxe Monitor - The 491 monitor simultaneously monitors two blowers, three meters, three bins along with a host of other parameters. The 491 supports blockage monitors to ensure that the sensors do not cause the blockage. The 491 tracks the acreage for each meter & displays meter RPM. Other features include a hydraulic case drain disconnect alarm & low fan speed alarms.
Read More



Capacity From 200 to 440 Bushels

The 8" (203 mm) diameter auger will quickly fill each air seeder compartment.
  • Patented Internal Third Tank Design
  • Loading/Unloading Auger, 8" Dia.
  • Power Hydraulic Calibration

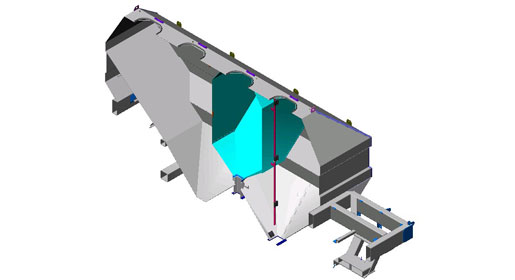

The patented internal third tank design allows you to configure the 5000 Series as a two or three tank seeder.
  • Patented Internal Third Tank Design - The patented internal third tank design allows you to configure the 5000 Series as a two or three tank seeder. The contents of the centre tank can be diverted to either the front or rear tank using an internal trap door system. (Not available on the two compartment Model 5200.)
  • Loading/Unloading Auger - The 8" (203 mm) diameter Loading/Unloading Auger will quickly fill each air seeder compartment. It can easily be pivoted around, so to empty the tanks after seeding. Hydraulic controls are located both at the base and at the top of the auger for control from
    the cat walk. A brake system on the main loading / unloading auger pivot locks the auger in position when loading on side slopes or operating on windy days.
  • Power Hydraulic Calibration - Hydraulic Calibration makes it easy to obtain a larger sample. Install the calibration boxes underneath one or
    more of the calibration ports and turn on the hydraulic motor to obtain a sample.
Read More



Specifications

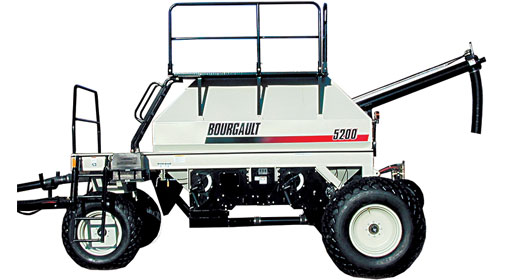

5200 Air Seeder

Standard Models

Models 5200, 5250, 5300, 5350 & 5440

Expand to access detailed product specifications.

Models 5200 5250 5300 5350 5440*
Tank Capacity 200 bu 250 bu 300 bu 350 bu 440 bu
A) 3 Tank Config.
Front 80 bu 40% 100 bu 40% 120 bu 40% 140 bu 40% 145 bu 33%
Centre N/A N/A 50 bu 20% 60 bu 20% 70 bu 20% 75 bu 17%
Rear 120 bu 60% 100 bu 40% 120 bu 40% 140 bu 40% 220 bu 50%
B) 2 Tank Config.
Front N/A N/A 150 bu 60% 180 bu 60% 210 bu 60% 220 bu 50%
Rear N/A N/A 100 bu 40% 120 bu 40% 140 bu 40% 220 bu 50%
C) 2 Tank Config.
Front N/A N/A 100 bu 40% 120 bu 40% 140 bu 40% 145 bu 33%
Rear N/A N/A 150 bu 60% 180 bu 60% 210 bu 60% 295 bu 67%
Height (hand rail down): 12' 0" 12' 0" 12' 0" 12' 0" 12' 0"
Width: 11' 7" 13' 0" 13' 0" 13' 0" 13' 4"
Weight: Tow Behind 7180 lb 7950 lb 8520 lb 8930 lb 10690 lb
Leading 9200 lb 9720 lb 9840 lb 10920 lb N/A

* Not available as a leading (tow between) model.

Tires 5200 5250 5300 5350 5440*
Tow Behind
Standard - Front 14.9L x 24 Diamond 21.5Lx16.1 Softrac 21.5Lx16.1 Softrac 21.5Lx16.1 Softrac 21.5Lx16.1 Softrac
- Rear 18.4Lx26 Diamond 23.1Lx26 Diamond 28Lx26 Diamond 28Lx26 Diamond 30.5Lx32 Diamond
Optional - Front 14.9Lx24 Rice Lug 21.5Lx16.1 Traction Lug 21.5Lx16.1 Traction Lug 21.5Lx16.1 Traction Lug 21.5Lx16.1 Traction Lug
- Front 14.9Lx24 R1 - 540/65 R24 R1W Lug 540/65 R24 R1W Lug 540/65 R24 R1W Lug
- Front 21.5Lx16.1 Diamond - 560/65 D24 Softrac 560/65 D24 Softrac 560/65 D24 Softrac
- Rear 18.4Lx26 Rice Lug & R1 23.1Lx26 Rice Lug 28Lx26 Rice Lug 28Lx26 Rice Lug 30.5Lx32 Rice Lug
- Rear 560/65 D24 Softrac 23.1Lx26 R1 28Lx26 R1 - -
- Rear - - 800/65 R32 R1W Lug - -
Leading
Standard 28Lx26 Diamond 28Lx26 Diamond 30.5Lx32 Diamond 30.5Lx32 Diamond N/A
Optional 28Lx26 Rice Lug 28Lx26 Rice Lug 30.5Lx32 Rice Lug 30.5Lx32 Rice Lug N/A
Optional 28Lx26 R1 28Lx26 R1 800/65 R32 R1W Lug 800/65 R32 R1W Lug N/A
Metering Drive: Ground driven metering with spring loaded chain tensioner on main chain drive.
Metering System: PDM Plus standard - product rates from 1 lb/acre to 250 lb/acre.
Air Fan Drive: Piston Motor with 15,000 hour rating. Requires closed centre hydraulics, minimum 10 gpm at 2250 psi.
Air Stream Capacity: 18" dia radial blade delivers 350 lb/acre of total product at 5 mph on a 40' implement.
Drive Clutch: Heavy duty main drive electric clutch with individual clutches for each meter with manual rate selection system.
Tank Lid Size: 18" x 18"
Calibration: Hydraulic powered stationary calibration standard. (Optional on Model 5250)
Rate Adjustment: Infinitely adjustable transmission design, manual or optional in-cam electronic control.

Other Features:

  • Fold down top hand rails and fold up side access ladders.
  • All transfer tubes are located on left hand side for unrestricted auger access when unloading tanks.
  • Standard 8" dia Load/Unload Auger with pivot brake.
  • Optional Rear Tow Hitch rated for draft forces up to 15000 lb.
  • Optional E-Zee Hitch for attaching the cart to the seeding unit
  • Optional Track Eradicators for eliminating tank tracks behind Tow Behind air seeders.
  • Optional ProTech 99 seed treatment system.
  • Optional Air Kit Package for Single, Double, or MulitShoot capabilities.
  • Optional Lighting Package for night time visibility.
  • Optional 2nd Fan for Double and Multi-Shoot options
Read More


Specifications

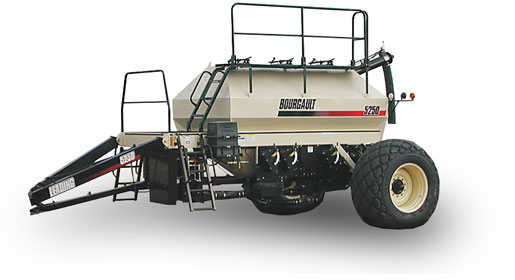

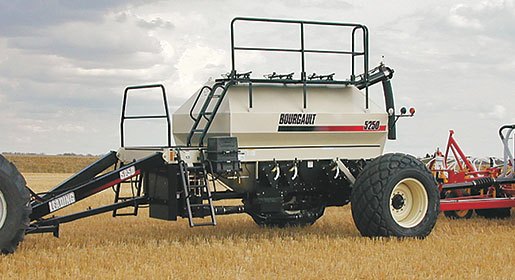

5250 Leading Air Seeder

Standard & Australian Models

Models 5195, 5200, 5245, 5250

Expand to access detailed product specifications.

Models 5195 5200 5245 5250
Tank Capacity (litres) 7000 litres 7000 litres 8800 litres 8800 litres
A) 3 tank system
Front 2590 37% 4200 60% 2933 33% 3520 40%
Centre 1820 26% N/A N/A 2933 33% 1760 20%
Rear 2590 37% 2800 40% 2933 33% 3520 40%
B) 2 tank system
Front 4410 63% 4200 60% 5860 7% 5290 60%
Rear 2590 37% 2800 40% 2930 33% 3520 40%
C) 2 tank system
Front 2590 37% 4200 60% 2930 33% 3520 40%
Rear 4410 63% 2800 40% 5860 67% 5290 60%
Height (hand rail down): 3.7 m 3.7 m 3.7 m 3.7 m
Width: 3.5 m 3.5 m 4 m 4 m
Weight: Tow Behind 3257 kg 3257 kg 3606 kg 3606 kg
Leading 4173 kg 4173 kg 4409 kg 4409 kg

* Not available as a leading (tow between) model.

Tires 5195 5200 5245 5250
Tow Behind
Standard - Front 14.9L x 24 Diamond 14.9L x 24 Diamond 21.5Lx16.1 Softrac 21.5Lx16.1 Softrac
- Rear 18.4Lx26 Diamond 18.4Lx26 Diamond 23.1Lx26 Diamond 23.1Lx26 Diamond
Optional - Front 14.9Lx24 Rice Lug 14.9Lx24 Rice Lug 21.5Lx16.1 Traction Lug 21.5Lx16.1 Traction Lug
- Front 14.9Lx24 R1 14.9Lx24 R1 - -
- Front 21.5Lx16.1 Diamond 21.5Lx16.1 Diamond - -
- Rear 18.4Lx26 Rice Lug & R1 18.4Lx26 Rice Lug & R1 23.1Lx26 Rice Lug 23.1Lx26 Rice Lug
- Rear 560/65 D24 Softrac 560/65 D24 Softrac 23.1Lx26 R1 23.1Lx26 R1
- Rear - - - -
Leading
Standard 28Lx26 Diamond 28Lx26 Diamond 28Lx26 Diamond 28Lx26 Diamond
Optional 28Lx26 Diamond 28Lx26 Diamond 28Lx26 Diamond 28Lx26 Diamond
Optional 28Lx26 R1 28Lx26 R1 28Lx26 R1 28Lx26 R1
Metering Drive: Ground driven metering with spring loaded chain tensioner on main chain drive.
Metering System: PDM Plus standard - product rates from 1.1 kg/ha to 281 kg/ha.
Air Fan Drive: Piston Motor with 15,000 hour rating. Requires closed centre hydraulics, minimum 45 L/min at 15500 kpa.
Air Stream Capacity: 457 mm dia radial blade delivers 393 kg/ha of total product at 8km/h on a 12 in. implement.
Drive Clutch: Heavy duty main drive electric clutch with individual clutches for each meter with manual rate selection system.
Tank Lid Size: 0.46 m x 0.46 m
Calibration: Hydraulic powered stationary calibration standard. (Optional on Model 5250 & 5195)
Rate Adjustment: Infinitely adjustable transmission design, manual or optional in-cam electronic control.

Other Features:

  • Fold down top hand rails and fold up side access ladders.
  • All transfer tubes are located on left hand side for unrestricted auger access when unloading tanks.
  • Standard 203 mm dia Load/Unload Auger with pivot brake. (optional on Australian models)
  • Optional Rear Tow Hitch rated for draft forces up to 6800 kg.
  • Optional E-Zee Hitch for attaching the cart to the seeding unit.
  • Optional Track Eradicators for eliminating tank tracks behind Tow Behind air seeders.
  • Optional ProTech 99 seed treatment system.
  • Optional Air Kit Package for Single, Double, or MultiShoot capabilities.
  • Optional Lighting Package for night time visibility.
  • Optional 2nd Fan for Double and Multi-Shoot options.
Read More



Specifications

5250 Leading Air Seeder

Standard & Australian Models

Models 5295, 5300, 5345, 5350 & 5440

Expand to access detailed product specifications.

Models 5295 5300 5345 5350 5440*
Tank Capacity (litres) 10,500 litres 10,500 litres 12, 300 litres 12, 300 litres 15,500 litres
A) 3 tank system
Front 3500 33% 4230 40% 4100 33% 4930 40% 5100 33%
Centre 3500 33% 2110 20% 4100 33% 2470 20% 2640 17%
Rear 3500 33% 2110 40% 4100 33% 4930 40% 7750 50%
B) 2 tank system
Front 7000 67% 6340 60% 8200 67% 7400 60% 7750 50%
Rear 3500 33% 4230 40% 4100 33% 4930 40% 7750 50%
C) 2 tank system
Front 3500 33% 4230 40% 4100 33% 4930 40% 5100 33%
Rear 7000 67% 6340 60% 8200 67% 7400 60% 10400 67%
Height (hand rail down): 3.7 m 3.7 m 3.7 m 3.7 m 3.7 m
Width: 4 m 4 m 4 m 4 m 4.1 m
Weight: Tow Behind 3865 kg 3865 kg 4051 kg 4051 kg 4849 kg
Leading 4463 kg 4463 kg 4953 kg 4953 kg N/A

* Not available as a leading (tow between) model.

Tires 5295 5300 5345 5350 5440*
Tow Behind
Standard - Front 21.5Lx16.1 Softrac 21.5Lx16.1 Softrac 21.5Lx16.1 Softrac 21.5Lx16.1 Softrac 21.5Lx16.1 Softrac
- Rear 28Lx26 Diamond 28Lx26 Diamond 28Lx26 Diamond 28Lx26 Diamond 30.5Lx32 Diamond
Optional - Front 21.5Lx16.1 Traction Lug 21.5Lx16.1 Traction Lug 21.5Lx16.1 Traction Lug 21.5Lx16.1 Traction Lug 21.5Lx16.1 Traction Lug
- Front 540/65 R24 R1W Lug 540/65 R24 R1W Lug 540/65 R24 R1W Lug 540/65 R24 R1W Lug 540/65 R24 R1W Lug
- Front 560/65 D24 Softrac 560/65 D24 Softrac 560/65 D24 Softrac 560/65 D24 Softrac 560/65 D24 Softrac
- Rear 28Lx26 Rice Lug 28Lx26 Rice Lug 28Lx26 Rice Lug 28Lx26 Rice Lug 30.5Lx32 Rice Lug
- Rear 28Lx26 R1 28Lx26 R1 28Lx26 R1 28Lx26 R1 800/65 R32 R1W Lug
- Rear 800/65 R32 R1W Lug 800/65 R32 R1W Lug - - -
Leading
Standard 30.5Lx32 Diamond 30.5Lx32 Diamond 30.5Lx32 Diamond 30.5Lx32 Diamond N/A
Optional 30.5Lx32 Diamond 30.5Lx32 Diamond 30.5Lx32 Diamond 30.5Lx32 Diamond N/A
Optional 28Lx26 R1 28Lx26 R1 800/65 R32 R1W Lug 800/65 R32 R1W Lug N/A
Metering Drive: Ground driven metering with spring loaded chain tensioner on main chain drive.
Metering System: PDM Plus standard - product rates from 1.1 kg/ha to 281 kg/ha.
Air Fan Drive: Piston Motor with 15,000 hour rating. Requires closed centre hydraulics, minimum 45 L/min at 15500 kpa.
Air Stream Capacity: 457 mm dia radial blade delivers 393 kg/ha of total product at 8km/h on a 12 in. implement.
Drive Clutch: Heavy duty main drive electric clutch with individual clutches for each meter with manual rate selection system.
Tank Lid Size: 0.46 m x 0.46 m
Calibration: Hydraulic powered stationary calibration standard. (Optional on Model 5250 & 5195)
Rate Adjustment: Infinitely adjustable transmission design, manual or optional in-cam electronic control.

Other Features:

  • Fold down top hand rails and fold up side access ladders.
  • All transfer tubes are located on left hand side for unrestricted auger access when unloading tanks.
  • Standard 203 mm dia Load/Unload Auger with pivot brake. (optional on Australian models)
  • Optional Rear Tow Hitch rated for draft forces up to 6800 kg.
  • Optional E-Zee Hitch for attaching the cart to the seeding unit.
  • Optional Track Eradicators for eliminating tank tracks behind Tow Behind air seeders.
  • Optional ProTech 99 seed treatment system.
  • Optional Air Kit Package for Single, Double, or MultiShoot capabilities.
  • Optional Lighting Package for night time visibility.
  • Optional 2nd Fan for Double and Multi-Shoot options.
Read More
