Model 2135Past Performers

Years In Service

2000 - 2008

Model 2135

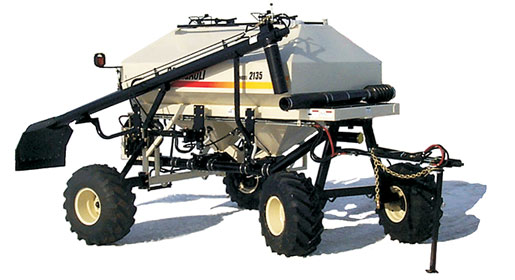

The Model 2135 Air Seeder offers 135bu of total capacity; 78bu in the front and 52bu in the rear.

491 Air Seeder Monitor
Quick Change Sprocket System
Positive Displacement Metering (PDM) System
2135 HC Model provided extra clearance.

A highly accurate Positive Displacement Metering System

491 Monitor - The Model 491 Monitor provides standard monitoring features, including air seeder statistics such as fan speed, application rate, bin levels, area seeded, & ground speed. Case drain pressure is monitored to help prevent costly hydraulic fan motor damage.
Quick Change Sprocket System - The "wrenchless" Quick Change Sprocket System allows the operator to select any rate without the need for changing or adjusting the internal workings of the metering system. A chart provides typical rates along with the recommended sprocket.

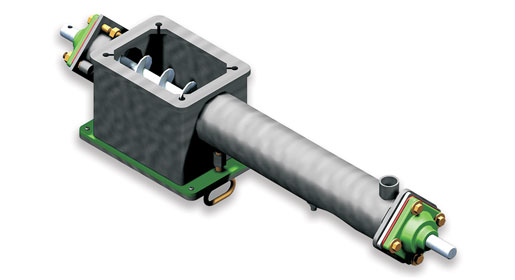

Positive Displacement Metering (PDM) System
- Works with all types of seeds & fertilizers without changing components
- A large flow-through sump allows complete tank clean out and convenient meter inspection
- Independent test results show that the PDM system is both gentle and accurate with all seed types.

The two tank air seeder can efficiently apply a wide range of products.

Balanced Load/Unload Auger
Control L/U Auger From Above or Below
Optional Tires Available
Hydraulic or Gas Motor Fan Drive

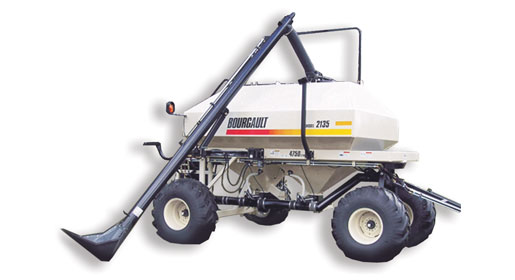

Balanced Load/unload Auger - The well balanced 6 in (15 cm) loading and unloading auger provides an easy to secure locking system. It can be rotated 180 degrees to unload the air seeder from the centrally located tank clean outs. The bottom end of the auger features cupped flighting for a more complete auger hopper clean out.

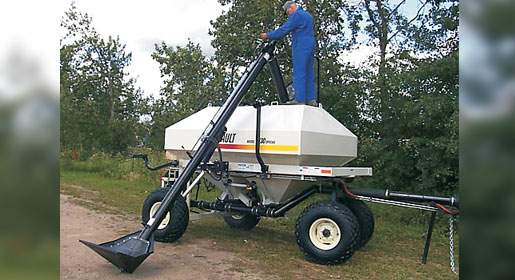

Control the Auger From Above or Below - The auger features dual controls for operation from the ground level or from the top of the platform. The auger control located at the top of the auger allows for filling of the seeding compartments while minimizing the number of times the operator must climb up and down from the seeder.
Tire Options - The 2135 was available with 16.5 x 16.1 Softrac tires, 16.5 x 16.1 traction lug tires, or 12.4 x 16 AWT tires.
Fan Drive Options - Eaton Piston Hydraulic Motor or 20 HP Horizontal Shaft V-Twin Air Cooled 4 cycle OHV Motor.

Specifications

Expand to access detailed product specifications.

Model	2135
Weight
Hydraulic	3150 lbs	1430 kgs
Gas	3575 lbs	1622 kgs
Height	10ft 9in (2135 HC - 11ft 9in)	3.28m (2135 HC - 3.58m)
Width	9ft 0in	2.74m
Ground Clearance	15" (2135 HC - 26")	0.31m (2135 HC - 0.66m)
Tracking - 2135	54" Front - 89" Rear	1.37m Front - 2.26m Rear
Tracking - 2135 High Clearance	60" Front - 120" Rear	1.52m Front - 3.05m Rear
Length	18ft 0in	5.49m
Total Tank Volume	130 bu (162 ft³)	4.58 m³
Front Tank	78 bu (97 ft³)	2.85 m³
Rear Tank	52 bu (65 ft³)	1.9 m³
Tank Lid Size	18" x 18"	.46m x .46m
Radial Fan	18" diameter	.46m diameter
Air Stream Capacity	300 lb/acre of total product at 5 mph on a 30 ft unit	337 kg/ha of total product at 8 kph on a 9m unit
Seeding Rate Ranges:
Front Metering Auger	14lb/acre to 250lb/acre	15.7kg/ha to 281kg/ha
Rear Metering Auger	3lb/acre to 150lb/acre	3.4kg/ha to 168 kg/ha
Fan Drive, Hydraulic Motor	Eaton Piston Motor - 15,000 hr rated
Minimum Motor Requirements	Closed centre hydraulics, 10gal/min at 2250 p.s.i.	Closed centre hydraulics, 37.8L/min at 15,500 k.p.a.
Fan Drive, Gas Motor	20 HP Horizontal Shaft V-Twin Air Cooled 4 cycle OHV Standard Heated Air Intake System
Meter Drive	Ground driven, engaged by magnetic clutch
Load/Unload Auger	6" diameter with 0.5" hopper screen	152mm diameter with 13mm hopper screen
Monitor	Monitors blower RPM, meter shafts, clutch on/off, tank low level Acre meter & calibration meter.
Options:	Auxiliary clutch for independent tank meter control Double shoot air system Row Crop Front Axle Various monitor upgrades available
Tires:	16.5 x 16.1 traction lug tires 16.5 x 16.1 Softrac tires 12.4 x 16 AWT tires
