Model 6450Past Performers



Years In Service


2005 - 2020

Model 6450

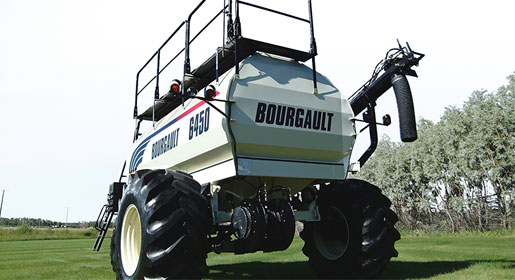

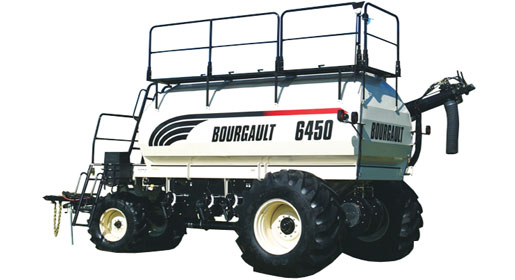

The Model 6450 Air Seeder
  • PDM Metering & Transmission Drive
  • Bourgault Class A Product Distribution System
  • Tank Mounted Camera System
  • Cab Rate Adjust
  • Optional Product Lift System

The Model 6450 Air Seeder
  • Product Distribution System - The Bourgault Class A Product Distribution System includes the PDM Plus Metering Auger, Straight-Thru Primary Lines, and an Air Seeder Kit that is proven to be even, accurate, and gentle on all products.
  • Positive Displacement Metering
    • PDM Pro Metering - A precise, finely pitched high-density poly metering auger draws product from a large, flow-through sump, through a machined metering orifice.  The barrel of the auger housing is lined with a UMHW liner. (later models)
    • PDM Plus Metering - The high density poly metering auger is matched with a machined steel orifice to provide accurate and consistent product metering (older models)
  • Transmission Metering Drive - The metering system transmits power from the drive wheel through a main clutch & drive shaft.  Separate gearboxes are stationed along the drive shaft, each protected with it's own torque limiting clutch.
  • Good Floatation -  Various Tire Options ensure good floatation & minimal compaction.
  • Cab Rate Adjust - The Cab Rate Adjust option allows you to adjust the metering rate of each individual metering auger on-the-go from the tractor cab.
  • Tank Mounted Camera System - Bourgault offers a leading stand-alone monitoring system that allows you to watch what is happening in each compartment and behind the air seeder.
  • Product Lift System - Bourgault is the first in the industry to provide the Product Lift System for operator safety and convenience.
Read More



Advanced Air Seeder Design


Various Tire Options ensure good flotation & minimal compaction.
  • Power Hydraulic Calibration System
  • Model 591 Air Seeder Monitor
  • Optional Optical Blockage Sensors
  • Optional X35 Seed Rate Controller
  • Standard 10" Load/Unload Auger or Deluxe 10" Load/Unload Auger
  • Working Lights

The Model 6455 Leading air seeder provides many features that will allow you to get more done in your valuable seeding day.

Exceptional Value & Rugged Dependability

  • Power Hydraulic Calibration - The Hydraulic Calibration feature will enable you to capture a large sample for a more accurate rate calculation, especially with low-rate products such as canola.
  • Model 591 Air Seeder Monitor - The 591 Air Seeder Monitor provides instantaneous feedback on air seeder operations including fan speed, application rate, bin levels, area seeded, & ground speed.
  • Optical Blockage Sensors - Available as single run or full run packages.
  • The X35 Apollo System
    • Features a heads-up dashboard, customizable to view up to 8 air seeder functions with 3 viewable items per function.
    • A Wi-Fi dongle, which is installed to the back of the X35 generates a local wireless hotspot that a smart phone or tablet can be connected to when the appropriate app is installed.
    • The Topcon X30 Apollo, X30 1B1, and X20 Seeder Controllers were also an option on older models.
  • Load/Unload Auger
    • The Standard 10" Auger, Load/Unload Rate: approx. 70 bu./min based on dry barley @ 48 lb/bu.
    • The Deluxe 10" Auger, Load/Unload Rate: approx. 85 bu./min. (2995 l/min) based on dry barley.
  • Working Lights - Are located around the metering transmissions, the sides of the tank, the load/unload auger spout, cat walk, and on the rear of the air seeder to enhance productivity and safety during night time operation.
Read More



Specifications


Expand to access detailed product specifications.


Model L6450 L6455
Total Tank Volume 450 bu (15,862 l) 455 bu (16,034 l)
#1 Tank Volume 145 bu (5,111 l) 160 bu (5,638 l)
#2 Tank Volume 15 bu (529 l) 65 bu (2,291 l)
#3 Tank Volume 60 bu (2,115 l) 230 bu (8,105 l)
#4 Tank Volume 230 bu (8,105 l)
Model L6450/L6455
Height - Transport (Top of L/U Agr/Cnvr) 12' 5" 3.8 m
Height - Field (Top of Hand Rail) 15' 0" 4.6 m
Overall Width (Single Tires) 13' 9" 4.2 m
Hitch Pin to L/U Auger/Conveyor 32' 8" 10 m
Hitch Pin to Rear Tow Hitch Pin 30' 2" 9.2 m
Rear Tire Spacings, Single 10' 10" 3.3 m
Rear Tire Spacings, Inside Dual 10' 0" 3 m
Rear Tire Spacings, Outside Dual 15' 0" 4.6 m
Weight, Empty (Single Tires) *** 14,000 lb 6,350 kg
Loaded Hitch Weight: 8,600 lb 3,900 kg
Load/Unloading Augers/Conveyor 10" Standard 10" Deluxe
L/U Auger/Conveyor Load Rate (max.) 70 bu/min
2,467 l/min
85 bu/min
2,995 l/min

*** All Units weighed with a L/U Auger
