Model L6280 LeadingPast Performers

Years In Service

2004 - 2013

Best Option for Smaller Operations

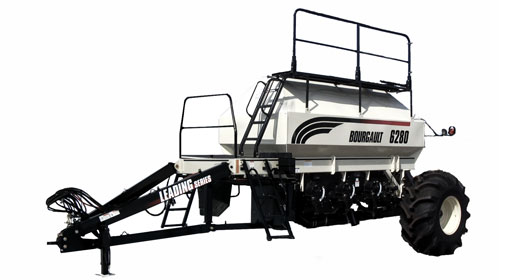

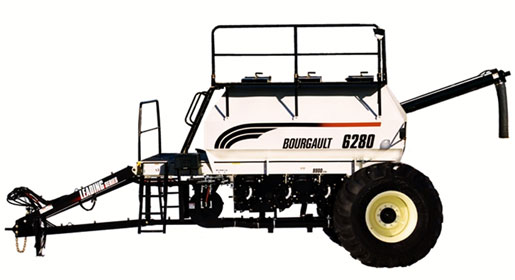

The Leading L6280 Air Seeder provides a versatile 3 compartment cart with features that allow you to get more done in your valuable seeding day.

Ground pressure does not exceed 18 psi (124 kPa) even when fully loaded*.
Approximately 6,500 lb (2,950 kg) hitch weight fully loaded*.
PDM Metering & Transmission Drive
Bourgault Class A Product Distribution System
Cab Rate Adjust
Optional Product Lift System

The superior design and balance allows only approximately *8650 lbs (3920 kg) hitch weigh for a Leading 6455 fully loaded.

Air Cart Configuration - The Leading Air Seeder configuration is balanced and tested to ensure the ground pressure does not exceed 18 psi (124 kPa) when fully loaded*.
Leading Air Cart Hitch - The superior design and balance allows only approximately 6,500 lb (2,950 kg) hitch weight fully loaded*. Tractors may require a drawbar support kit.
Product Distribution System - The Bourgault Class A Product Distribution System includes the PDM Seeder Kit that is proven to be even, accurate, and gentle on all products.
Positive Displacement Metering
- PDM Pro Metering - A precise, finely pitched high-density poly metering auger draws product from a large, flow-through sump, through a machined metering orifice. The barrel of the auger housing is lined with a UMHW liner. (later models)
- PDM Plus Metering - The high density poly metering auger is matched with a machined steel orifice to provide accurate and consistent product metering (older models)
Transmission Metering Drive - The metering system transmits power from the drive wheel through a main clutch & drive shaft. Separate gearboxes are stationed along the drive shaft, each protected with it's own torque limiting clutch.
Good Floatation - Various Tire Options ensure good floatation & minimal compaction.
Cab Rate Adjust - The Cab Rate Adjust option allows you to adjust the metering rate of each individual metering auger on-the-go from the tractor cab. This feature is very convenient for making slight adjustments for product rates.
Tank Mounted Camera System - Bourgault offers a leading stand-alone monitoring system that allows you to watch what is happening in each compartment and behind the air seeder.
Product Lift System - Bourgault is the first in the industry to provide the Product Lift System for operator safety and convenience.

*Based on 55lb/ft³ (880 kg/m³) product.

The Leading Air Seeder Configuration is balanced and tested to ensure both hitch weight and ground compaction are within the Producer's parameters.

Power Hydraulic Calibration System
Model 591 Air Seeder Monitor
Optional Optical Blockage Sensors
Optional X35 Seed Rate Controller
Standard 8" Dia. Auger
Working Lights

Exceptional Value & Rugged Dependability

Power Hydraulic Calibration - The Hydraulic Calibration feature will enable you to capture a large sample for a more accurate rate calculation, especially with low-rate products such as canola.
Model 591 Air Seeder Monitor - The 591 Air Seeder Monitor provides instantaneous feedback on air seeder operations including fan speed, application rate, bin levels, area seeded, & ground speed.
Optical Blockage Sensors - Available as single run or full run packages.
The X35 Apollo System
- Features a heads-up dashboard, customizable to view up to 8 air seeder functions with 3 viewable items per function.
- A Wi-Fi dongle, which is installed to the back of the X35 generates a local wireless hotspot that a smart phone or tablet can be connected to when the appropriate app is installed.
- The Topcon X30 Apollo, X30 1B1, and X20 Seeder Controllers were also an option on older models.
Standard 8" Dia. Auger - The Standard 8 Inch (203mm) Load/Unload Auger provides a simple and effective means to transfer product into and out of the air seeder. Achieve 30 bu/min. load rates, based on dry barley @ 48 lb/bu.
Working Lights - Are located around the metering transmissions, the sides of the tank, the load/unload auger spout, cat walk, and on the rear of the air seeder to enhance productivity and safety during night time operation.

Specifications

Expand to access detailed product specifications.

Model	L6280
Total Tank Volume	280 bu	9870 l
#1 Tank Volume	112 bu	3950 l
#2 Tank Volume	56 bu	1970 l
#3 Tank Volume	112 bu	3950 l
Height - Transport (Top of L/U Agr/Cnvr)	12' 1"	3.7 m
Height - Field (Top of Hand Rail)	14' 0"	4.3 m
Overall Width (Single Tires)	13' 2"	4 m
Hitch Pin to L/U Auger/Conveyor	31' 3"	9.5 m
Hitch Pin to Rear Tow Hitch Pin	27' 3"	8.3 m
Rear Tire Spacings, Single	10' 10"**	3.3 m**
Weight, Empty ***	10,200 lb	4,627 kg
Loaded Hitch Weight	6,500 lb	2,950 kg
Load/Unloading Augers/Conveyor	8" dia.	203 mm dia.
L/U Auger/Conveyor Load Rate (max.)	30 bu/min	1,057 l/min
