9200 Floating Hitch Chisel PlowPast Performers

Years In Service

1992 - 1994

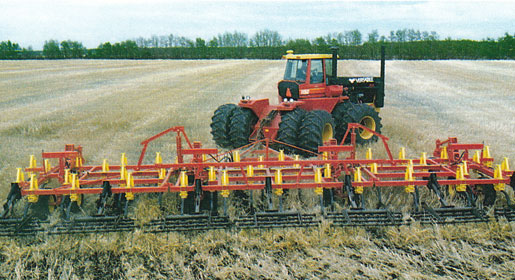

9200 Floating Hitch Chisel Plow

The 9200 4-Row Floating Hitch Chisel Plow proved to be one of the toughest and most reliable chisel plow ever made, yet delivers precision terrain following characteristics.

Full 4-row frame construction with 102" frame depth
28' to 52' working widths

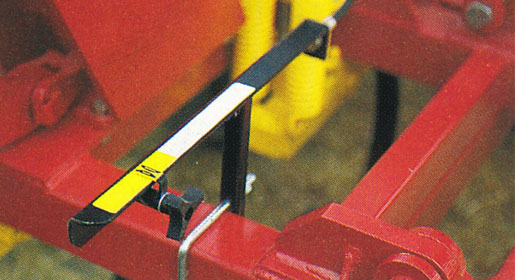

Easy front to back levelling

Tough & Reliable

High tensile strength, hollow structural frame tubing
Pole hitch for a tighter turning radius on models up to 40'

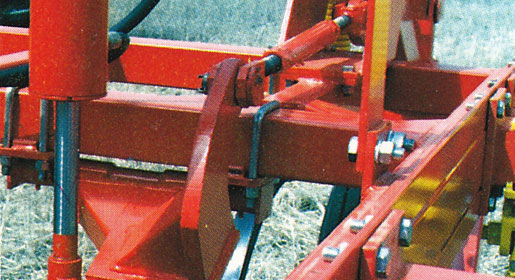

Patented parallel lift linkage system
Distance of 11'4" between the caster wheel and centre of in-frame walking axle pivot

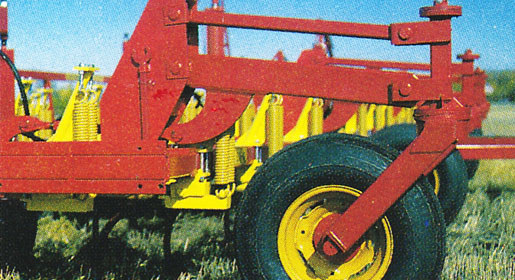

Greaseless caster wheel parallel link

The 9200 CP provides excellent residue clearance with either a 500 pound working force trip or a 600 pound working force trip.

Spacing - 12" shank spacing
Trip Strength - 500 pound working force trip 1" x 2" tempered steel shank 30" of ground to frame clearance. 600 pound working force trip 1 1/4" x 2" tempered steel shank 33" of ground to frame clearance

Ductile steel castings with a single pivot point and Nylatron® wear bushing
36" minimum between any two shanks; 48" between any two shanks on the front two rows
13" obstacle clearance with standard sweeps
Standard sweep - 50 degree stem; 2-1/4'' holes centers; 1/4" x 16" shank

Specifications

Expand to access detailed product specifications.

Model	9200-28	9200-36	9200-48
Available Working Widths	28', 30', 32', 34'	36', 38', 40', 42'	48', 50', 52'
Number of Frame Sections	3	3	5
Transport Width	21'	23'	26'6"
Transport Height - maximum	14'	17'	16'6"
Weight:
w/ 500 lb. Trip	9,087 lbs.	10,729 lbs.	15,331 lbs.
w/ 600 lb. Trip	9,780 lbs.	11,613 lbs.	15,805 lbs.
Tires w/ 500 lb. Trip:
Main Frame	four 9 x 15LT - 8 ply	four 9 x 15LT - 8 ply	four 11 x 15LT - 8 ply
Inner Wings	-	-	four 9.5L x 15 - 6 ply
Outer Wings	four 9.5L x 15 - 6 ply	four 9.5L x 15 - 6 ply	four 9.5L x 15 - 6 ply
Main Frame Caster Wheels	two 9.5L x 15 - 6 ply	two 9.5L x 15 - 6 ply	two UL x 15 - 6 ply
Wing Caster Wheels	two 9.5L x 15 - 6 ply	two 9.5L x 15 - 6 ply	four 9.5L x 15 - 6 ply
Tires w/ 600 lb. Trip:
Main Frame	four 11 x 15LT - 8 ply	four 11 x 15LT - 8 ply	four 11 x 15LT - 12 ply
Inner Wings	-	-	four UL x 15 - 6 ply
Outer Wings	four 11L x 15 - 6 ply	four 11L x 15 - 6 ply	four UL x 15 - 6 ply
Main Frame Caster Wheels	two 11L x 15 - 6 ply	two 11L x 15 - 6 ply	two UL x 15 - 6 ply
Wing Caster Wheels	two 11L x 15 - 6 ply	two 11L x 15 - 6 ply	four UL x 15-6 ply
