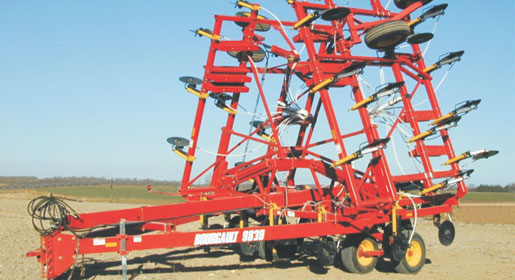

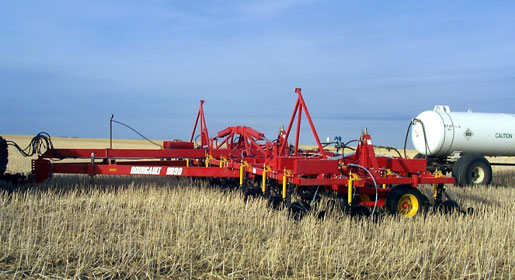

9830 Rigid Hitch Coulter ApplicatorPast Performers

Years In Service

2002 - 2007

The 9830 Rigid Hitch Coulter Applicator is an excellent choice for fertilizer application with minimal disturbance.

The 9830 is a 3-plex rigid hitch unit that was offered in sizes from 36’ to 40’.
20” coulter with 500 lbs. down force
25” ground clearance
When fertilizing hay or crop land, the coulter provides efficient nitrogen placement with minimal disturbance.

Benefits of the Bourgault 9830 Rigid Hitch Coulter Applicator:

Expand to access detailed product specifications.

Model	9830-36	9830-40
Number of sections	3	3
Number of rows	4	4
Base Size	36’	36’
Frame Width
Main frame	13’ 6”	13’ 6”
1st Wing	11’ 3”	11’ 3”
2nd Wing	N/A	N/A
Transport width, max	18’ 10”	18’ 10”
Transport height, max	11’ 5”	11’ 6”
Tire Sizes:
Main frame	11L x 15", FI Load range 'F'	11L x 15", FI Load range 'F'
1st wing	-	9.5L x 15", 6 ply
2nd wing	N/A	N/A
Main frame castor wheels	N/A	N/A
1st wing castor wheels	N/A	N/A
2nd wing castor wheels	N/A	N/A
Weight of Base Unit:
Max. weight with ballast	18,300 lbs	18,300 lbs
General Specifications:
Spacing	12” spacing - other spacings available by request - contact your local Bourgault Dealer
Coulter Assemblies	20” coulter with 500 lbs. down force and 25” ground clearance. Mounted on a 2000 lb hub with a triple lip seal.
Closer Wheels	Recommended with NH3 application. Choice of Regular or Grassland closer wheel.
Harrows or Packers	Optional 3 or 4 bar harrow or mounted packers
Tow Hitch	Optional
Gauge Wheels	Optional on 9830’s; not required on 8830’s
Safety Lights	Standard
Safety Chain	Standard
Depth Control Setting	Single Point
Mud Scrapers	Optional
Weight Packages	Recommended to aid penetration
Single Shoot Air Kits	Optional
Blockage Monitors	Optional
