Specifications9500 Floating Hitch Chisel Plow

Model Specifications

Expand to access detailed product specifications.

MODEL	9500-60	9500-70
No. of Sections	5	5
Working Widths
12" spacing	56', 60'	66', 70'
Transportation Width	24'6"	24'6"
Weight (base unit - lb)*
500 lb trips	56' - 28,300 / 60' - 28,900	66' - 31,000 / 70' - 31,600
600 lb trips	56' - 30,400 / 60' - 31,000	66' - 33,400 / 70' - 34,000
Tires
Main Frame	380/55R16.5 150A8/B (4)	380/55R16.5 150A8/B (4)
Inner Wing	13.5Lx15FI (4)	13.5Lx15FI (4)
Outer Wing	13.5Lx15FI (4)	13.5Lx15FI (4)
Main Frame Casters	13.5Lx15FI (4)	13.5Lx15FI (4)
Inner Wing Casters	13.5Lx15FI (2)	13.5Lx15FI (2)
Outer Wing Casters	13.5Lx15FI (2)	13.5Lx15FI (2)

* All weights and transport dimensions are estimates and are subject to change.
Every effort has been made to ensure that the information is accurate/current at the time of production.

General Specifications

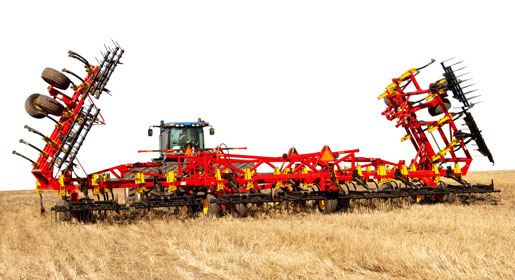

9500 Floating Hitch Chisel Plow

Choose between 500 lb, 600 lb and hydraulic trips.
"Quick-Shift" Depth Control.
Offset walking tandem axles under all frames.

Expand to access detailed product specifications.

General
Wheel System	Offset walking tandem axles under all frames
Wheel Standard	Walking Axles & Casters - triple-lip seals on 5,000 lb hubs
	Main Frame Walking Axles - triple-lip seals on 6,000 lb hubs
Mud Scrapers	Optional fixed or spring-loaded style
Openers	Quick-Change and Speed-Loc Adapters are optional
Air Kits	Single-Shoot or Double-Shoot Air Kits are available
Blockage Monitors	Optical Blockage Monitors available for secondary lines
Mounted Harrows	Optional 3 or 4-bar harrows
Mounted Packers	Optional gang-style, or independent poly packers
Clearance
500 lb trips	1¼" x 2" shank, 30" of frame to ground clearance, 12" of obstacle clearance
600 lb trips	1¼" x 2" shank, 31½" of frame to ground clearance, 13" of obstacle clearance
Hydraulic Spring Trip	1¼" x 2" shank, 30" of frame to ground clearance, 12" of obstacle clearance
Shank Spacing	36" min. between adjacent shanks and 32" between frame rows
Depth Control	Hydraulic series rephasing cylinders, “Quick-Shift” Depth Control
	Variable Depth/ Precision Control Valve
Front to Back Leveling	Wings - Floating Hitch Axle/Caster Wheel Linkage System
	Main Frame - Caster Leveling Screw, 8'9" between the caster wheels and walking axle pivot
Mid Row Banders^®	N/A
