Specifications4100 Wing Type Packers



Model Specifications

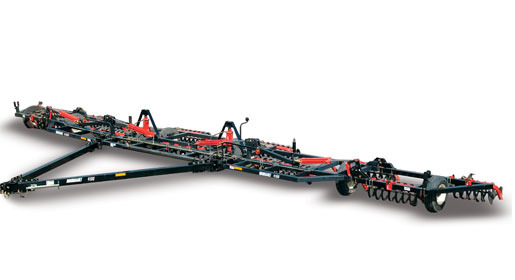

4100 Wing Type Packer

Expand to access detailed product specifications.

Note: Scroll left & right to view all available models.


MODELS 4100 WTP 25-33 4100 WTP 35-40 4100 WTP 48-52 4100 WTP 55-60
No. of Sections 3-plex 3-plex 5-plex 5-plex
Available Widths 25' (7.6m) 30' (9.1m) 33'4" (10.2m) 35'
(10.7m)
40'
(12.2m)
48'
(14.6m)
50'
(15.2m)
52'
(15.9m)
55'
(16.7m)
60'
(18.3m)
Basic Weight 1-3/4" (44mm) Coils 5340 lbs
(2,420 kg)
7,100 lbs
(3,220 kg)
10,220 lbs
(4,630 kg)
11,720 lbs
(5,320 kg)
Transport/Operating Length 24' (7.3 m)
Frame 4" (101 mm) hollow structural box tubing
Packer Coils 1-3/4" (44 mm)
Packer Coil Gang Widths 3' (0.9m), 4' (1.2m), 5' (1.5m)
Minimum Hydraulic Pressure Req. 1900 psi (13,100 kPa)
Tires, Main Frame 11L x 15L F- 12 ply R.I. (2) 11L x 15L F- 12 ply R.I. (2) 11L x 15L D- 8 ply R.I. (4) 11L x 15L D- 8 ply R.I. (4)
Tires, Inner Wing 9.5L x 15 8-ply (2) 9.5L x 15 8-ply (2) 9.5L x 15 8-ply (2) 9.5L x 15 8-ply (2)
Tires, Outer Wing - - 9.5L x 15 8-ply (2) 9.5L x 15 8-ply (2)
Transport Width 17' 11" (5.46 m) 17' 11" (5.46 m) 19' 5" (5.92 m) 19' 5" (5.92 m)
Transport Height - at max.size 12' (3.66m) 16' 11" (5.16 m) 13' 2" (4.01 m) 16'5" (5.0 m)
Track Eliminators Optional
Hitch Extension Kit Optional
