Bourgault Seeding System

ISO Apollo System8000 Series Air Carts / CD Frame Mounted Seeders / HD Frame Mounted Seeders



Monitoring Through The Universal Terminal


The ISO Apollo System provides Operators with a seeder monitoring system along with basic rate control features on their tractor's built-in universal terminal screen. The ISO Apollo System is optional for 8000 Series Air Carts or for Frame Mounted Seeders™.

Display On Tractor UT


ISO Apollo System

The ISO Apollo System is designed to take advantage of the universal terminal found in newer tractors of most manufacturers for full monitoring capabilities, basic rate control options and reduced clutter in the tractor cab.

The ISO Apollo System offers:

  • Air Cart Monitoring;
  • Basic Metering Control;
  • Product Settings Index;
  • Calibration; and,
  • Blockage Monitor Support.

The ISO Apollo System operates in accordance with the ISO 11783 standard.


ISO Apollo - Seeder Settings

Air Cart Monitoring

Operators are provided feedback on critical air cart functions such as fan rpm, calculated metering rate, calculated product remaining and area applied. Possible critical conditions including: bin level low, low case drain pressure and zero metering shaft rpms are monitored and the Operator is alerted if required.

ISO Apollo - Metering Control

Basic Metering Control

Supports up to 4 metering augers, displaying calculated rate application and calculated remaining product. It also provides two preset rate options per product, as well as incremental rate adjustment, allowing the Operator to "bump up" or "bump down" metering rates during seeding.

ISO Apollo System

Product Settings Index

Conveniently store data for up to 16 products on the system, including calibration factors. This eliminates the tedious work of entering product and calibration data each time you change products.

ISO Apollo - Calibration

Calibration

The calibration feature provides an easy 4-step process to calibrate. Common keypad controls make product calibration a snap from either in the tractor cab or the air cart tank.

ISO Apollo - Blockage

Blockage Monitor Support

The ISO Apollo System is capable of displaying an optional blockage monitoring package based on single sensor per section.


Read More

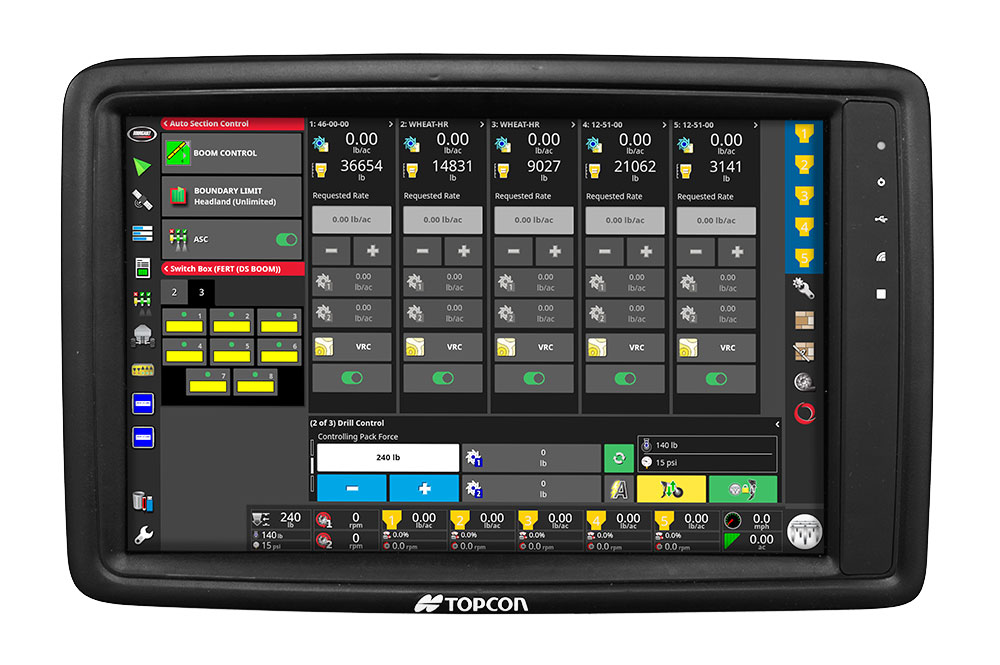

Apollo XD Display


Apollo XD Display

Optional ISO Display

For tractors not equipped with a universal terminal, Bourgault offers the XD display console. The 7" color display provides touch screen capabilities for adjusting values and switching screens.




Take Control


The X35 Apollo Seeder Controller

It is easy to upgrade!  A system currently equipped with the Apollo ISO System can be upgraded to the X35 Apollo System by adding the X35 controller display module in the tractor cab.

Take control of your seeding operation with the X35 Apollo System.
