Specifications5810 Air Hoe Drill

Model Specifications

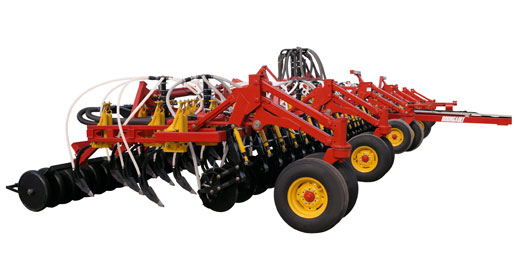

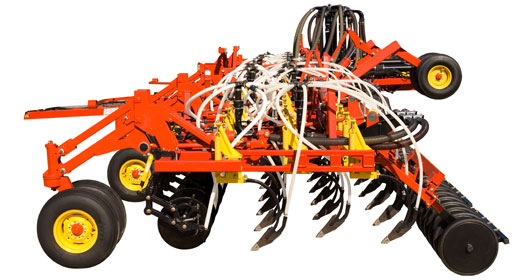

The 5810 Air Hoe Drill maintains proven features from past designs, while incorporating new innovations

The 5810 AHD maintains proven features from past designs, while incorporating new innovations; Bourgault offers the most advanced and effective air hoe drill on the market.

Expand to access detailed product specifications.

MODEL 5810-32 5810-42 5810-52 5810-62 5810-72
No. of Sections 3 3 5 5 5 op./7 trans
No. of Rows w/o MRB® 4 4 4 4 5
 w/ MRB® 3 3 3 3 4
Working Widths
 9.8" Spacing 32'8" 42'6" 52'3" 62'1" 71'10"
12.6" Spacing 33'7" 42' 54'7" 63'0" 73'6"
Transport Widths (at top) 22'3" 22'3" 23'8" 24' 23'5"
Transport Height (max) 12'8" 17'6" 16'1" 17'11" 18'11"
Weight (lb) estimates only -
9.8" Spacing w/ MRB® 25,000 28,250 36,000 40,500 48,800
9.8" Spacing w/o MRB® 22,500 25,000 32,000 35,700 43,300
12.6" Spacing w/ MRB® 23,600 26,000 33,750 38,150 45,200
 12.6" Spacing w/o MRB® 21,600 23,500 30,500 34,400 40,600
  Tires Mainframe Casters 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI 16.5L x 16.1FI
   Inner Wing Casters (double-walking) 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI
   Inner Wing Casters (double) 11L x 15FI 11L x 15FI 11L x 15FI 11L x 15FI N/A
   Outer Wing Casters (double-walking) N/A N/A 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI
   Outer Wing Casters (double) N/A N/A 11L x 15FI 11L x 15FI N/A
Rear Transport Wheels 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI 13.5L x 15FI
* All weights & transport dimensions are estimates & are subject to change.
Every effort has been made to ensure that the information is accurate/current.
Read More



General Specifications


5810 Air Hoe Drill is a conventional floating hitch drill with a wide range of packer options.

The 5810 Air Hoe Drill is a conventional floating hitch drill with a wide range of packer options, excellent flotation, single-point depth control and a proven spring trip design.

Expand to access detailed product specifications.

5810
Spring Trip 330 lb Spring Trip / 450 lb HD Spring Trip
Row-to-Row Spacing  24½"
Frame Depth 77½" for 5810-42, -52, -62 / 102" for 5810-72
Caster to Packer Depth 159" at 1" working depth / 188" for 5810-72
Obstacle Clearance, In-Field Trips ~10" / MRB®, MRS™ ~8" with mid rows lowered
Obstacle Clearance, In Trans. Trips ~12" / MRB®, MRS™ ~22½" with mid rows raised
Shank Spacing 9.8" & 12.6"
Packer Options Steel - 2¼", 3½", 4½" / Rubber - 3", 4" / Pneumatic - 5½"
Mud Scrapers Optional for steel wheels
Stone Kickers Standard
Hydraulic System Master/slave depth cylinders, single-point depth adjustment
Openers Quick-Change adapters standard
Air Kits Single-point & double-shoot air kits available
Blockage Monitors Blockage monitors available for secondary or tertiary air lines
Safety Chain and Lights Standard
Transport Locks Standard
Mid Row Banders® Optional MRB®
Rear Tow Hitchc Standard
* All weights & transport dimensions are estimates & are subject to change.
Every effort has been made to ensure that the information is accurate/current.
Read More



Hydraulic Requirements


Recommended Flow Requirements

Hydraulic flow requirements are highest when turning on the headlands. The recommended flow allows the seeding system to be raised and lowered within two headlands. It should be noted that the recommended fan requirements are for the maximum operational speed (RPM) of the fan.




Minimum Flow Requirements

  • Recommended hydraulic flow should provide minimal fan slowdown during headland turns. The openers will take hydraulic flow priority over the fans.
  • If operating at minimum flow requirements, the air seeder fans will drop a minimum of 20% during headland turns. This may require a 3rd headland to allow the openers time to raise and lower.
  • In typical operating conditions one or both fans are operating at less than maximum output levels, which will reduce hydraulic requirements.
Flow Requirements MIN. GPM REC. GPM
10" spacing with MRB® 20 25
10" spacing w/o MRB® 15 22
12" spacing with MRB® 22 25
12" spacing w/o MRB® 13 18

Coupler Requirements

  • A ½" coupler is only rated for flow rates of 12 gpm. As flow increases beyond this value, a large pressure drop is created across the couplers which in turn increases pressure requirements. The durability of the ½" couplers can also be compromised when operating at high flow rates.
  • It is recommended to use ¾" couplers on the tractor and implement, as this will greatly reduce the pressure drops and will increase the flow of oil to the fan or opener cylinders.
  • Some tractors are equipped with more than one hydraulic pump which can be set up to operate independent of each other in a "twin flow" style. This configuration opens up the option of arranging so that the air seeder fans draw off one pump and the PHD drill can draw off of the the second. Configured this way, there is no chance of fan speed drop off due to headland opener cycling.

Air Cart - Hydraulic Requirements

  • Hydraulic Requirements - Air Cart Fan Options.
  • Hydraulic Requirements - 8000 & 9000 Series Metering Augers.
Go to PHD™ Specifications 8000 Series Air Cart Specifications
Go to PCD™ Specifications 9000 Series Air Cart Specifications
Read More
