Model 2155Past Performers



Years In Service

1987 - 1999

Model 2155

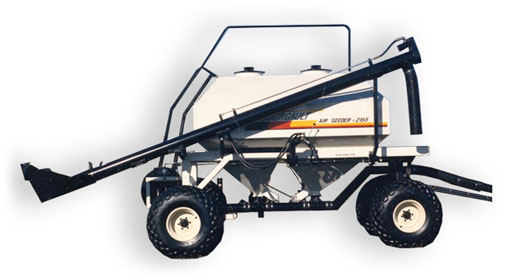

2155 Air Cart

The Model 2155 features a total tank capacity of 155 bushels with a 93/62 bushel split.

  • High Efficiency 18" Fan
  • Convenient 7" Loading/Unloading Auger
  • Precise Bechard Metering System
  • Fantastic Flotation
A Very Precise Metering System
  • High Efficiency 18" Fan:
    • Apply up to 350 pounds per acre;
    • requires only 5 to 10 horsepower;
    • dynamically balanced.
  • Convenient Hopper On The Loading/Unloading Auger - The plastic hopper can easily be removed to allow emptying of any remaining grain or fertilizer. Also the flip-up screen gives you easy access to the auger flyting to remove straw or any other contaminants.
  • Loading Or Unloading:
    • The 7 inch auger will load the air seeder in less than 15 minutes.
    • The well balanced auger can easily be set up to unload by rotating the auger 180 degrees.
    • The open centre control valve prevents tractor hydraulic kick-out if the auger is stopped or reversed
    • The plastic hopper can easily be removed to allow emptying of any remaining grain or fertilizer.
    • The flip-up screen gives you easy access to the auger flighting.
  • Precise Bechard Auger Metering System - The patented Bechard auger metering system is capable of metering most types of seed or fertilizer without having to change the internal workings of the metering system.
  • Fantastic Flotation - The Series II Model 2155 is standard with four 16.5 x 16.1, all weather lug type tread tires. It also features four independent wheel tracks to minimize compaction and pulverization.
Read More



Capacity & Performance

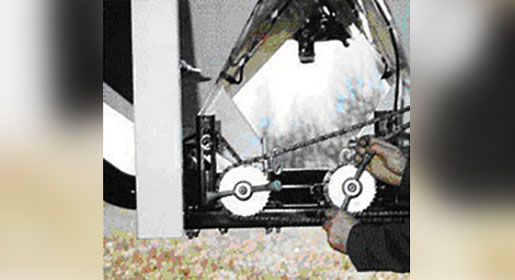

The fastest rate change in the industry.

All components are designed for outstanding durability, as well as performance.

  • Heavy Duty Magnetic Clutch
  • High Performance Cessna Piston Motor
  • "Wrenchless" Quick Change Sprockets
  • Hook Up Is Quick and Easy
  • Dual Shoot Seed Or Fertilizer / Granular
    Herbicide Application Option
  • Full Meter Calibration To Ensure Seeding
    Accuracy
Hook-up is quick and easy
  • Heavy Duty Magnetic Clutch - Extra heavy duty Warner magnetic clutch (rated at a static torque of 70 ft.-lbs.) turns metering on and off. The control box has a visual reminder so you can tell at a glance if the metering is on. An auxiliary clutch is available for independent control of the rear meter.
  • High Performance Cessna Piston Motor - The 18" radial blade fan is hydraulically powered by a high precision Cessna piston motor. This motor has a rated life of 15,000 hours at 2,500 psi and 3,000 rpm.
  • Kohler 20HP Gas Drive - A Kohler Gas Engine with a Donaldson Cyclo Pak Dual Element air cleaner for optional mechanical drive.
  • Fast Metering Rate Change -  The "wrenchless" quick change sprocket system allows for rate changes in less than two minutes.
  • Hook Up Is Quick and Easy - It takes less than five minutes to hook up to your cultivator. Tighten the clamp on the Single Transfer Line, re-attach the hydraulic and electrical quick couplers and you're ready to go.
  • Conveniently Located Auger/Blower Selector Valve - Control valve selects either the hydraulic blower or load/unload auger. There is no need to shut the blower down at the tractor on hydraulic units, as selecting the auger turns the blower off. Load the unit, close the lids and check the system by again selecting the blower mode without having to go back to the tractor.
  • Dual Shoot Seed Or Fertilizer And Granular Herbicide - This optional attachment converts a single shoot to dual shoot in a matter of minutes. An optional auxiliary clutch is available to control the rear meter independent of the front meter.
  • Full Meter Calibration To Ensure Seeding Accuracy - Calibration ports are located under each metering auger and the entire output of each auger is collected using specially designed boxes. This technique eliminates the error inherent with collecting a small sample from only one boot.
Read More



Specifications



Expand to access detailed product specifications.

Model 2195
Weight
2155H 3,750 lbs. 1701 kg.
2155G 4185 lbs. 1899 kg.
Height 10'9" 3.28 m
Width 9'4" 2.84 m
Length 19'0" 5.79 m
Tank Capacity 155 bu 5.63 m3
Front Tank 93 bu 3.38 m3
Rear Tank 62 bu 2.25 m3
Tires 16.5 x 16.1, All Weather
Air Stream Capacity Basis 40' - 350 Ibs./acre at 5 mph 12.1 m - 392 kg/ha. at 8 km/hr.
Fan 18"  High efficiency radial blade. 457 mm
Seeding Ranges:
Front Auger 20 to 216 Ibs./acre 22 to 242 kg/ha
Rear Auger 2.4 to 157 Ibs./acre 2.7 to 170 kg/ha
Seed Boot Lines 8" & 9" spaced - 3/4" I.D. -1 1/4" I.D. 12" spaced -1 1/4" I.D. 19.1 mm, 31.75 mm
Acre Meter Mechanical is standard
Monitor System Model 101 digital blower rpm and clutch on/off indicator light are standard.
Monitor Options

Low Bin Level Alarms
Meter Shaft Alarms
Electronic Calibration and Acre Meter
Blower Drive Choice of hydraulic or gas motor.
Gas Engine 20 h.p. Kohler Magnum 14.9 kW
Battery Heavy Duty 330 amp.
Air Cleaner Donaldson Cyclo Pak Dual Element
Fuel Tank 14 gallon 64 litres
Front Auger Double Flight, nickel plated
Rear Auger Triple Flight, nickel plated
Meter Drive Ground Driven from Rear Wheel
Auxiliary Clutch for Independent Control of Rear Meter Optional
Dual Shoot Granular Herbicide Attachment Optional
Read More
