4-Row Fixed Hitch ApplicatorPast Performers

Years In Service

1978 - 1992

Built to Get the Job Done

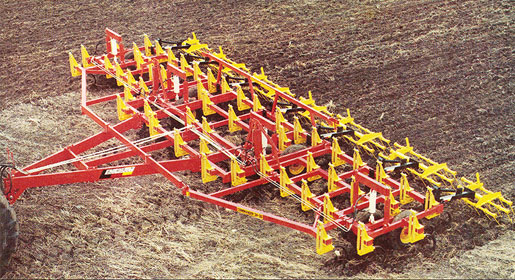

The Bourgault Four Row applicator offered fifteen working widths between 24' and 50', each designed to more than meet farmers' requirements.

The Fixed Hitch 4-Row Series Applicators feature:

8" shank spacing
Minimum of 24" between shank assemblies and 32" on the first row and most of the second.
The 27" ground-to-frame clearance gives you nonstop, no plug performance.
Metro single line lock maintains a closed hydraulic system for accurate depth control.
Optional Rear Tow Hitch
Optional Mounted Harrows - 3 & 4 Bar

Penetration Capability & Precise Depth Control

Available with 230lb or 330lb spring trip options.

The Fixed Hitch 4-Row Series Applicators featured:

8" shank spacing
Minimum of 24" between shank assemblies and 32" on the first row and most of the second
The 27" ground-to-frame clearance gives you nonstop, no plug performance

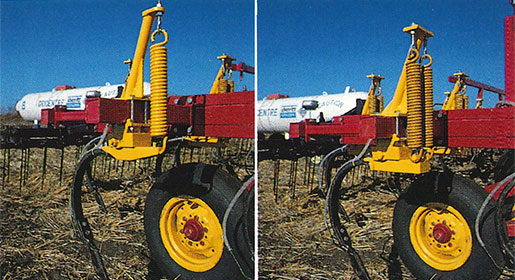

230 Spring Cushion

Choice of 7/8" x 2" tempered shank or short 7/8" x 2" shank for use with knives
3/4" pivot bolt
Single extension spring with a 230 lb. initial tension
Designed for medium primary tillage conditions

330 Spring Cushion

Choice of 7/8" x 2" tempered shank or short 7/8" x 2" shank for use with knives
7/8" pivot bolt
Two extension springs with a 330 lb. total initial tension
Designed for extreme primary tillage conditions

Specifications

Expand to access detailed product specifications.

Model	24-30 Applicator	28-34 Applicator	36-42 Applicator	46-50 Applicator
Weights (full extensions)	230lb trips - 4,715 lbs. 230lb trips - 7,207 lbs.	230lb trips - 6,129 lbs 330lb trips - 6,490 lbs.	230lb trips - 7,207 lbs. 330lb trips - 7,669 lbs.	230lb trips -11,117 lbs. 330lb trips -11710 lbs.
Sizes	24', 26', 28', 30'	28', 30', 32', 34'	36', 38', 40', 42'	46', 48', 50'
Transport Height	11’	12'3"	14'8"	16'2"
Transport Width	18'8"	19'10"	22'3"	19'10"
Hydraulic specifications	Four depth control cylinders with a 4 ¼” x 8" master Two tie-rod wing lift cylinders	Four depth control cylinders with a 4 ¼” x 8" master Two tie-rod wing lift cylinders	Four depth control cylinders with a 4 ¼” x 8" master Two tie-rod wing lift cylinders	Six depth control cylinders With a 4 ½” x 8" master Four tie-rod wing lift cylinders
Wheel standards	Four single axles	Four walking axles *Two stabilizer wheels	Four walking axles *Two stabilizer wheels	Four walking axles Single axles on the outer wings Two stabilizer wheels
Tires - Main frame	Two 9.5L x 14 - 6-ply	Four 9.5L x 14 - 6-ply	Four 9.5L x 14 - 6-ply	Four 9.5L x 15LT - 8-ply
- Outer wings	Two 7.50 x 14 - 4-ply	Two 7.50 x 14 - 4-ply	Four 7.50 x 14 - 4-ply	Two 9.5L x 15 - 6-ply
- Inner wings	-	-	-	Four 7.60 x 15 - 4-ply
- Stabilizer wheels	-	*Two 7.50 x 14 - 4-ply	*Two 7.50 x 14 - 4-ply	*Two 7.50 x 14 - 4-ply
General Specifications
Frame	3 ½” tubular frame construction 2" x 8 ½” tubular hitch 4-row frame construction around the wheels and on the center section 8' frame depth
Shank Spacing	12" overall 36" minimum row shank spacing
230lb Trips	Ductile steel casting with a single ¾” pivot point and nylatron wear bushing Single extension spring with 7/8” x 2" tempered standard or short shank
330lb Trips	Ductile steel casting with a single 7/8" pivot point and nylatron wear bushing Double extension springs with 7/8" x 2" tempered standard or short shank
Hydraulic System	Wheel-lift system-rephasing cylinders connected in series; Wing-lift system-tie-rod cylinders 5/8" and 3/8" lines with a zinc chromate finish; Metro single line lock valve
Axles & Wheels	Single axles and walking axles with greaseable self-sealing Timken bearings in the pivot hub 5,000 lbs. grease-able hubs and spindles for the wheel assemblies throughout
