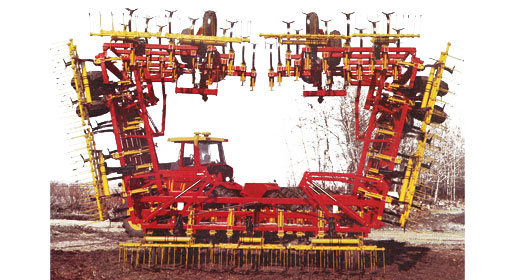

5 Row Fixed Hitch CultivatorPast Performers

Years In Service

1982 - 1987

Dual-Purpose Cultivator

The 5 Row Fixed Hitch Cultivator is ruggedly constructed with:

3½" square frame tubing,
3½" x 2" cross brace tubing,
8½" x 2" hitch tubing,

all extra heavy wall to resist fatigue cracking.

Get the Job Done Right

Quick Adjust castoring stabilizer wheel.

All Bourgault Cultivators featured the unique levelling screw system. This allowed to level your cultivator with the precision required in today's farming.

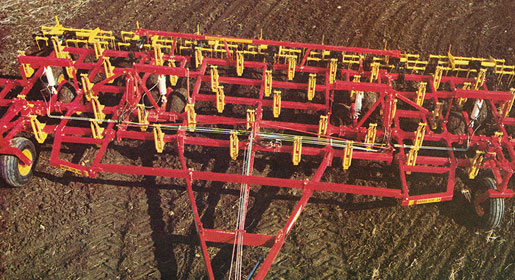

The Five-Row Cultivator was ideal for use with Air Seeders, both for banding and seeding. The large flotation tires, the Cessna slave series hydraulic system, the 8 inch shank spacing with 32 inches between any two shanks, all team up to give you the type of performance you need to do these jobs right.

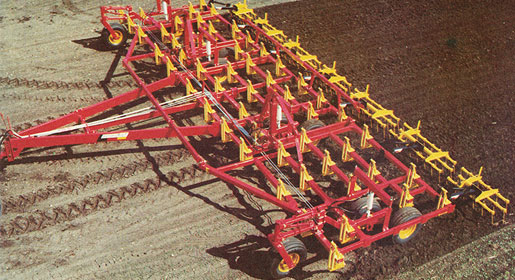

The Five-Row was only 10½" deeper than the Four-Row model. The wheels were very close to being mounted in the centre of the frame to improve the cultivator's ability to follow contours.

The Five-Row Cultivator featured a 3/4" x 2" Tempered Steel Shank. This shank assembly provided an obstacle clearance of 12 inches to clear rocks and other obstructions with ease.

The optional Titan Harrow works off a nylon equipped greaseless pivot to protect the attachment pin. A heavy mounting bracket capable of withstanding side loads up to 1400 lbs. eliminates all side play. A heavy duty pressure spring forces the harrow down to spread out straw and pull out weeds with maximum efficiency.
The "Quick Adjust" castoring stabilizer wheel was standard on all 5 Row Series Cultivators. All castoring wheels used 11 L x 15 tires for extra flotation.

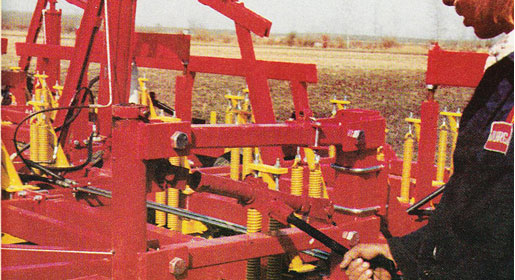

All Five-Row Series Cultivators featured the unique levelling screw system to level your cultivator with the precision required for seeding.

Specifications

Expand to access detailed product specifications.

230 Series	FH 528-32	FH 536-40	FH 546-52
Weights	8,506 lbs. at 32'	9,434 lbs. at 40'	12,000 lbs. at 52'
Max. Transport Dimensions	height – 11’5", width - 21'	height - 15'9", width - 21'	height - 16'3", width @ top - 25'3"
Hydraulic Specifications	Four depth control cylinders with a 4¼” x 8" master	Four depth control cylinders with a 4¼” x 8" master	Four depth control cylinders with a 4½” x 8" master
Axles	Four walking-axles	Four walking-axles	Six walking-axles
Castor Wheels	Four castor wheels	Four castor wheels	Six castor wheels
Tires
Main Frame	four 9 x 15LT - 8-ply	four 9 x 15LT - 8-ply	four 11 x 15LT - 8-ply
Wings	four 9.5L x 15 - 6-ply	four 9.5L x 15 - 6-ply	eight 9.5L x 15 - 6-ply
Castor Wheels	four 9.5L x 15 - 6-ply	four 9.5L x 15 - 6-ply	two 11L x 15 - 6-ply/ four 9.5L x 15 - 6-ply
General Specifications
Frame	5-row frame, 3½” tubular frame construction Retractable pole hitch 8'6" frame depth
Shank Spacing	8" shank spacing 32" minimum row shank spacing
Spring Cushion	Ductile steel casting with a single 3/4" pivot in and nylatron wear bushing Single extension spring with an initial tension of 230 lbs. 3/4" x 2" tempered shank (7/8" x 2" optional) 27" sweep-to-frame & 15" actual obstacle clearance Standard sweep used is a ¼”x 11" Bourgault PW-1147
Hydraulic System	Wheel-lift system - rephasing Eaton/Cessna Wyrlock cylinders connected in series Wing-lift system - scissor type 5/8" and 3/8" lines with a zinc chromate finish Variable Depth/Precision Control Valve prevents outside interference with the rephasing hydraulic system
Axles & Wheels	Walking axles with greasable sealed bearings in the pivot hub Front castoring wheels feature a large pivot shaft and nylatron wear bushings 5,000 lbs. hubs and spindles
