5810 Air Hoe Drill

5810 Air Hoe DrillBourgault Main



Proven Seeding Technology


The 5810 Air Hoe Drill is a conventional floating hitch drill with a wide range of packer options, excellent flotation, single-point depth control and a proven spring trip design.

Superior Design & Construction


Spend less time in the yard and more time in the field with the Bourgault 5810 Air Hoe Drill

Spend less time in the yard and more time in the field.

You need a seed drill that you can count on, and the 5810 is that drill. The 5810 Air Hoe Drill will stand up to the season's demands with minimal service requirements and is backed by Bourgault's 3-Year Limited Warranty.

Bourgault 3Year Limited Warranty

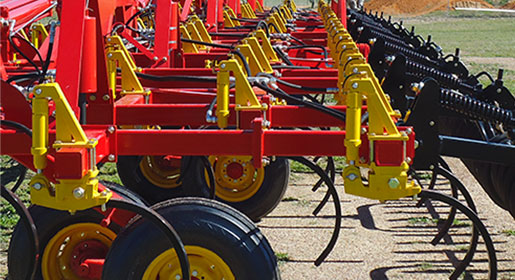

Drill weight and working force is transferred efficiently to ensure consistent soil penetration throughout the width of the drill, even in hard soil conditions.


The construction of the 5810 AHD frame provides a deep profile for high strength and many years of trouble-free operation

The 5810 frame features 4" x 4"  ranks sandwiched between continuous members running top and bottom the full depth of the frame. This construction provides a deep profile for high strength and many years of trouble-free operation.


The minimal number of grease points on the 5810 AHD are located in easy to reach places

Non-greased pivot points use high quality replaceable wear resistant components such as nylon, case hardened steel or composite bushings mounted on hardened or chrome pins. Even the rockshafts are mounted on maintenance-free nylon bearings!

The minimal number of grease points on the 5810 are located in easy to reach places for extreme convenience.



Read More



Proven Trip Design


The Bourgault Spring Trip Assembly is designed for a wide operational range

330 lb & 450 lb HD trip options

The Bourgault Spring Trip Assembly features a 1" diameter grade 8 pivot bolt and an extremely durable greaseless nylon bushing. The simple and durable design provides years of service with low maintenance.
Not only are Bourgault spring trip assemblies more durable than the competition, you will appreciate the low cost of parts when maintenance is required.



Bourgault Spring Trip Configurations

Where many of the competitor’s systems ride up on top of the ground, the Bourgault Spring Trip cushion design utilizes increasing force geometry to deliver a consistent operating depth.

The 330 lb spring trip works well for seeding in most conditions with smaller openers.

  • The 330 lb Spring Trip Assembly incorporates a 1" pivot protected with a greaseless nylon bushing and a 1" x 2" shank.
  • This trip works well for seeding in most conditions with smaller openers. It can also be the correct choice for primary tillage in lighter soils.

The 450 lb trip is best suited when the tillage unit may be used periodically for heavy tillage operations.

  • The 450 lb HD Spring Trip Assembly incorporates a 1" pivot protected with a greaseless nylon bushing and a 1¼" x 2" to 1" x 2" tapered shank, which is 55% stronger than a 1" shank
  • The 450 lb HD trip is best suited for heavy tillage operations, or for use as a seeding unit in heavy soils when something other than a low disturbance opener is used.

Bourgault Warranty

Bourgault shanks are backed by a 5-year replacement warranty, plus a 50% lifetime warranty afterwards.

Read More



Precise Depth Control


The Bourgault 5810 Air Hoe Drill will ensure that you can achieve and maintain the desired seed placement

Reliable Frame Setting & Seed Depth Control

Seed placement is essential in getting your crop off to a healthy, even start. The 5810 AHD will ensure that you can achieve and maintain the desired seed placement.


Precise leveling is critical to achieving a consistent seedbed

Quick and Easy Leveling

Precise leveling is critical to achieving a consistent seedbed. The 5810’ s easy-to-access adjustments let you level your entire 5810 accurately using one standardized procedure...allowing you to get into the field faster! Adjustment wrenches are provided and detailed instructions are located near the point of adjustment.

Read More



A Dependable Hydraulic System


Quality hydraulic components for accurate and consistent depth control.

Simple & Reliable

Bourgault incorporates a superior dependable hydraulic design, a high quality depth control system, along with quality hydraulic components for accurate and consistent depth control and long service life.


Bourgault tillage units are designed with master/slave system system to control the operation depth.

Dependable Hydraulics

Bourgault tillage units are designed with a master/slave system to control the operating depth (either single or dual-series). This approach avoids the use of complex linkage systems that wear and stretch dramatically affecting the depth control.

A precision Line Lock Valve helps to ensure that the working depth never changes during operation. In addition, the Line Lock Valve ensures that any tractor hydraulic leaks are isolated from the cultivator.


The hydraulic fluid for the depth control is filtered going into the master cylinder when the unit is lifted

In-Line Filter System

The hydraulic fluid for the depth control is filtered going into the master cylinder when the unit is lifted. Contaminants are released back to the reservoir when the frame is lowered so that hydraulic cylinder shafts and seals are protected from scoring.

Read More



COMPACT TRANSPORT CONFIGURATION


The 5810 Air Hoe Drill features a very compact folding system for safe and convenient travel

For Safe & Convenient Travel

The 5810 AHD features a very compact folding system to make transporting through smaller passages easy. In transport position, the packer gangs can be retracted to increase clearance between the ground and packer wheels and reduce the overall transport width.


The 5810 Air Hoe Drill has automatically engaging rear transport locks

Automatically Engaging Rear Transport Locks

The rear transport frames are designed with an over-center locking system. This over-center mechanism automatically locks the transport wheels in place and removes all load from the transport cylinders.


The 72 foot 5810 AHD features X-Fold Technology

Unique Folding Design

The 5810-72 features X-Fold Technology, which provides a very compact transport configuration for such a large air hoe drill. It operates as a 5-plex unit, but folds as a 7-plex.

Read More



Opener Choice


The 5810 Air Hoe Drill can be equipped with a wide variety of opener options to suit your seeding requirements

Configure the 5810 AHD For Your Specific Needs

The 5810 AHD can be equipped with a wide variety of opener options to suit your seeding requirements.


The 5810 Air Hoe Drill can be equipped with a wide variety of opener options to suit your seeding requirements

The 5810 AHD accommodates:

  • quick-change knives that promote a low disturbance, high quality seedbed. To enable the Operator to place more fertilizer with the seed, quick-change spoon openers can be used;
  • other quick-change openers including: spread tip knives, hoe openers, vertical openers, sweeps and many more;
  • third-party, single- or double-shoot boots are also compatible with the 5810 AHD;

Note: Operators should consider 450 lb trips with double-shoot openers because of the higher draft forces that typically result.

Read More



5810 AHD Tires


The larger tires stand up to field and transport requirements.

Bourgault equips the 5810 AHD with larger tires that stand up to field and transport requirements.


Quality running gear on the Bourgault 5810 AHD.

  • Large caster wheels minimize the lb per square inch pressure for reduced compaction, improved transport handling and exceptional flotation in wet conditions.
  • The incorporation of double-caster and walking double-caster running gear minimize compaction while maximizing the stability for consistent seed depth.
  • The 5810-72 foot comes standard equipped with 16.5L x 16.1 mainframe caster tires and 13.5L x 15 tires on the inner and outer wings.
  • The 5810-62, 5810-52 and 5810-42 can be ordered with 13.5L x 15 tires all around.

Refer to Specifications for Details.

Read More



Superb Contouring

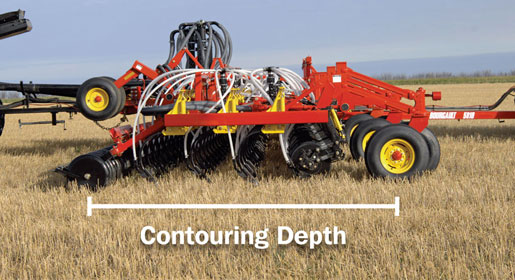

The 5810 AHD delivers a very shallow contouring depth to follow field topography

Excellent Land Following Capability The 5810 AHD delivers a very shallow contouring depth to follow field topography.

Minimal Distance Between Packers and Casters The packer wheels are mounted closely behind the rear trips and the front caster wheels are positioned within the first row of the air hoe drill’s frame.




MRB® III Fertilizer Application System


MRB® Fertilizer Application System

Optimal Placement in One-Pass Seeding

The Mid Row Bander® Fertilizer Application system provides optimal placement of nitrogen and sulphur fertilizer. MRBs® maximize the benefits and reduce the risk of one-pass fertilizer placement, while establishing a high quality seedbed.

Learn More



HVB™ III TYNE ASSEMBLY


Hydraulic Variable Breakout For Trip Tension Control

The HVB™ III tyne option incorporates an advanced and durable hydraulic system that provides farmers convenient on-the-go trip tension control.

The HVB™ III tyne option incorporates an advanced and durable hydraulic system that provides farmers convenient on-the-go trip tension control.  Heavy-duty tapered shanks and an advanced and durable hydraulic network will provide you simple and trouble-free operation for many seasons.

The HVB III HD will provide a maximum of 470 kg (1,000 lb) breakout force when operating at 1,600 psi pressure


Easily Adjust to Suit the Conditions From the Seat of Your Tractor

You have unprecedented control of your seeding results by easily adjusting the machine to suit the conditions of each paddock from the seat of your tractor.

You have unprecedented control of your seeding results by easily adjusting the machine to suit the conditions of each paddock from the seat of your tractor.  This will ensure that a consistent seeding tillage depth can be maintained without incurring excessive stress and wear on implement components.

You can easily set the optimal break out point, with the Bourgault HVB™ system;

  • With the depth control circuit in the transport position, engage the HVB™ circuit remote and charge the accumulator(s).
  • Set the system to a starting pressure point while referencing the HVB™ pressure gauge on the front rank of the implement.
  • Once the HVB™ circuit has been set, begin field operation at normal working speed in a location with the most typical characteristics.
  • While observing the movement of the trips and shanks, reduce the HVB™ circuit pressure in small increments using the tractor hydraulic remote until only slight tripping movement is observed.
  • Next, add about 50 psi as buffer for soil variation.

This will now be the optimum setting for the current field conditions. The openers will maintain consistent penetration, yet still minimize any damage to opener points and sowing boots when clearing obstacles.


Designed & Built for Extended Service

The HVB™ III tyne assembly incorporates well tested designs and state-of-the-art components

A heavy-duty 32mm x 51mm tapered shank reduces flexing and ensures years of trouble-free operation. Optional trip lockouts are easily installed without tools to disengage as many shanks as desired for seeding with a double row spacing.

This Bourgault shank has the industry leading 5 year full replacement warranty against shank breakage. Bourgault Limited Five Year Warranty

Advanced & Durable Hydraulics

The HVB™ III system is designed to operate at peak efficiency.

The HVB™ III system is designed to operate at peak efficiency. A maximum trip breakout point of 470 kg is achieved with only 11 mPa system pressure, which is also protected by a system relief valve.

The HVB™ system utilises a piston accumulator with a capacity of 20 litres. Each 3-section bar is equipped with one accumulator, and 5-section bars are equipped with 2 accumulators of equal capacity.

The incorporation of one-way flow restrictor adaptors eliminate high impact recoil when the tyne is tripped, and helps with setting the trip force, particularly for tractors with high flow hydraulic systems.


Availability:

8910 HVB™ III HD

  • All Bourgault 8910 Series Cultivators at 203 mm, 254 mm, or 305 mm spacing from 9 m to 18.3 m working widths.
  • Bourgault 8910-70(21.3m) Cultivator at 254 mm, or 305 mm spacing.
  • All Bourgault 5810 Series Air Hoe Drills at 250 mm or 320 mm spacing from 12.8 m to 22.4 m working widths.

HVB III HD -
Operating Pressure Range 700 to 11,000 kpa
Operating Breakout Range 45 kg to 470 kg
Accumulator 20 litres x 1 (3-plex), 20 litres x 2 (5-plex)
Tyne 32 mm x 50 mm tapered tyne
Clearance 686 mm frame to ground & 279 mm obstacle
Pressure Relief Valve 11,032 kPa max. (factory set)
Hydraulic Line Lock 1 per system
One-Way Flow Restrictors 1 per trip
Read More





Additional Resources


A comprehensive library of Bourgault product information is only a click away!
Visit the Bourgault Electronic Documentation System for parts and operational documentation.





Specifications


 5810 Specifications
