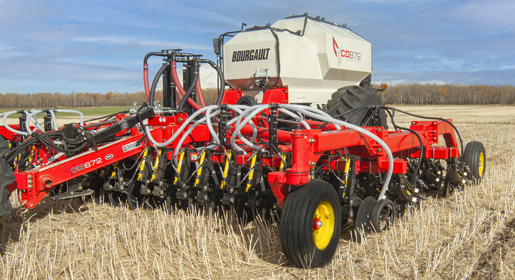

Bourgault Model CD872 Frame Mounted Seeder

Coulter Drill Frame Mounted Seeders™Frame Mount Seeders™



The CD FMS™ Seeding System combines the Bourgault heavy-duty steel air cart tank design with the ParaLink™ Walking (PLW™) or ParaLink™ Row (PLR™) coulter style openers.

ParaLink™ Coulter Drill

The ParaLink™ independent drill is available in either a 2-row coulter drill or a 3-row hoe drill system

The CD ParaLink™ independent drill is built on a 2-row coulter drill platform:

  • The CD FMS­™ is available on 165mm (6m & 8m only), 190mm (7½"), 254mm (10"), or 305mm (12") row spacings;
  • The 6m (20') FMS™ unfolds into a rigid continuous bar;
  • The 8m & 9m (26' and 30') units can be equipped with optional running gear on the wing to operate as a 3-plex bar for improved land following capability.
Learn More

Advanced Tank Design

The FMS™ air seeder is designed with the same proven Bourgault ingenuity found on Bourgault's large air seeder tanks.

Model 848 or Model 872 Options

Features such as the PDM Pro™ Metering System, the KNEX™ Integral Tank Design and the X35 Apollo System put Bourgault head and shoulders above the competition.

Choose between two tank options:

  • Model 872  7200 l (200 bu) total capacity, or,
  • Model 848  4800 l (136 bu) total capacity.
Learn More

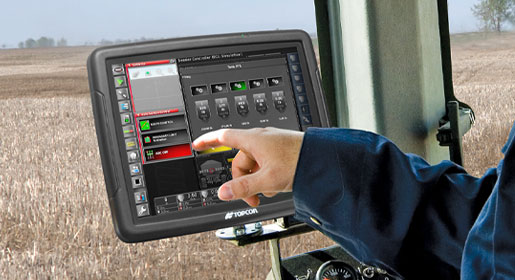

The large, full color X40 touch-screen features a heads-up dashboard that is customizable.

  • The X40 Apollo System Achieve unprecedented control and perform advanced seeding operations with the X40 Apollo System.
X40 - Learn More
  • The ISO Apollo System Calibrate and perform basic rate control functions for up to 4 products with tractors equipped with universal terminals.
ISO - Learn More

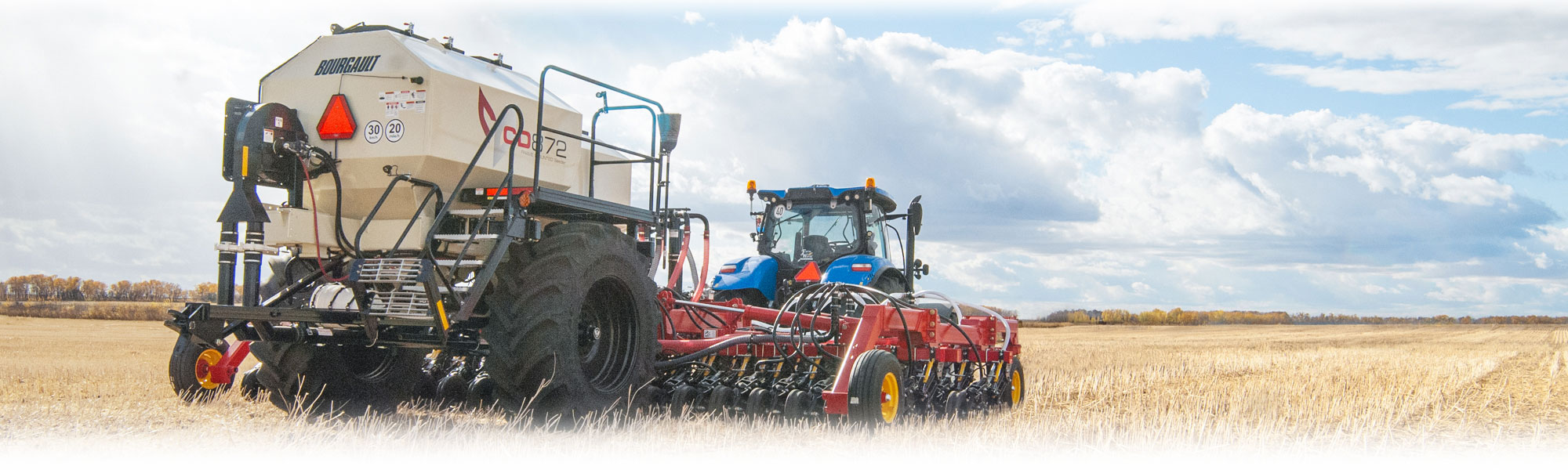

On The Move

The Bourgault FMS meets tight transport requirements

The Frame Mounted Seeder (FMS™) is a mid-range seeding system, tucked between the large-scale seeding systems and the smaller box seeders.

At a narrow, 3m transport width*, the Bourgault FMS™ successfully meets the tight transport requirements for most regions.

(* for units 6m - 8m with standard axles and no rear tow hitch)

FMS Transport Dimensions

All Perfectly Contained in One Package

The Frame Mounted Seeder™ (FMS™) successfully achieves the ultimate balance between productivity and ease of use.

  1. 3m transport width for 6m - 8m units
    [standard axles - no rear tow hitch; 3.4m for all units equipped with the rear tow hitch and/or 9m width (extended axles)];
  2. 3.4m transport height for units at 6m width;
    4.0m transport height for units at 8m width;
    4.6m transport height for units at 9m width.
Read More

MRB® Fertilizer Application System

Series III Mid Row Bander® Fertilizer Applicators achieve the best possible returns by placing your nitrogen fertilizer in the optimal location when one-pass seeding.

Series III Mid Row Banders® Fertilizer Applicators achieve the best possible returns by placing your nitrogen fertilizer in the optimal location when one-pass seeding.

Applicators are available in two formats:

  • Mid Row Bander® Fertilizer Applicators;
  • Mid Row Shank™ Fertilizer Applicators.
Availability varies on drill types and sizes.


Learn More



Additional Resources

A comprehensive library of Bourgault product information is only a click away!
Visit the Bourgault Electronic Documentation System for parts and operational documentation.



CD FMS™ Specifications
