6220 Fixed Hitch Coulter ApplicatorPast Performers

Years In Service

1999 - 2000

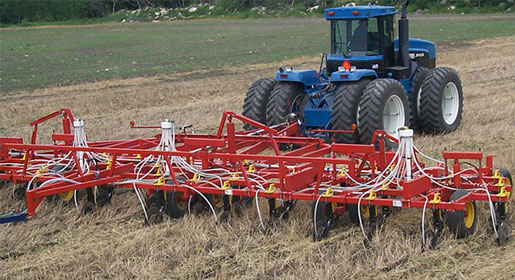

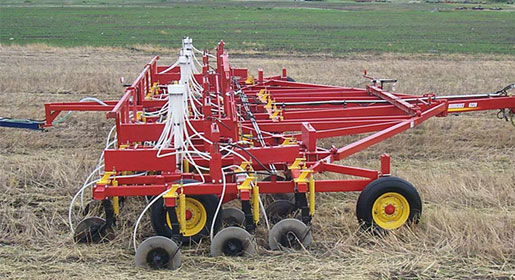

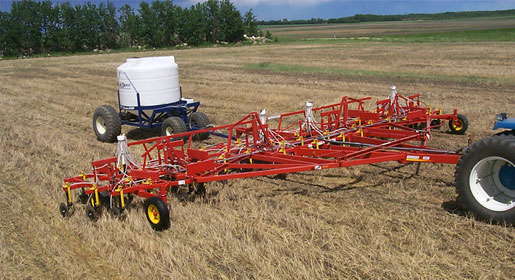

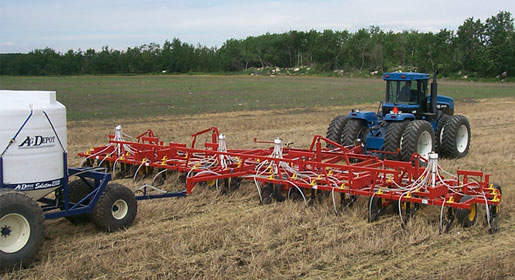

6220 Fixed Hitch Coulter Applicator

The 6220 Fixed Hitch Coulter Applicator is ideal for farmers who want to get their banding done in the fall yet minimize soil disturbance.

Available from 24' to 50'
12" spaced coulter openers

Ideal For Application Into Hay Land & Pasture

Strength - The 6220 Coulter Applicator works well in stony conditions leaving them undisturbed as it passes over them.
Fertilizer Applicator - The unit could also be used to apply fertilizer into hay land, and pasture.
Low Draft Requirements - The low draft requirements mean that a smaller tractor can pull a large applicator thereby reducing the cost of and time for application.

The Model 6220 Low Disturbance Applicator utilizes a mounted coulter disk to open a furrow in the soil to deposit product.

Fixed Height Bander Opener Design
Featured a 20''(508 mm) dia. coulter opener set at 400 lb (180 kg) initial trip force
Available with Standard or Grassland Closer Wheel

he Fixed Height Bander consists of a coulter disk mounted to a spindle arm

The Fixed Height Bander opener assembly consists of a coulter disk mounted to a spindle arm which uses an extension spring to maintain pressure on the disk as it runs through the soil.
The coulter disc is a 20" alloy steel disc set at a specific angle to part the soil and produce a furrow.
A steel closer wheel works behind the coulter opener to ensure the parted soil is moved back over the furrow to prevent the loss of product.
Also available is a grassland closer wheel which works in the same fashion as the steel closer wheel, but it provides a wider area of closing for the opened furrow.
The outside tine scraper keeps the side of the coulter disc free of mud or clay buildup. This scraper is essential in moist, high clay soils.
The floating scraper scours the disc as it turns, preventing it from plugging under most conditions. Secondly, it helps maintain the furrow prior to the product being delivered into the furrow. Two styles of floating scrapers are available:
- bullnose scraper - general all-purpose
- carbide scraper - high wear, used in heavy clay soil
Optional liquid fertilizer/anhydrous ammonia tubes are bolted onto the front of the seed boot mount when applying liquid product or anhydrous ammonia is required.

Specifications

Expand to access detailed product specifications.

Base Size	24'	28'	34'	36'	46'
Working Widths	24' (7.31 m), 26' (7.92 m) 28' (8.53 m), 30' (9.14 m)	28' (8.53 m), 30' (9.14 m) 32' (9.75 m), 34' (10.36 m)	34' (10.36 m), 36' (10.97 m) 38' (11.58 m), 40' (12.19 m)	36' (10.97 m), 38' (11.58 m) 40' (12.19 m), 42' (12.80 m)	46' (14.02 m), 48' (14.63 m) 50' (15.24 m)
Spacing	12'' (30.48cm)	12'' (30.48cm)	12'' (30.48cm)	12'' (30.48cm)	12'' (30.48cm)
Row Shank Spacing	36'' (91.44cm)min	36'' (91.44cm)min	36'' (91.44cm)min	36'' (91.44cm)min	36'' (91.44cm)min
Number of Frame Sections	three Full 4-row hollow frame structural frame tubing	three Full 4-row hollow frame structural frame tubing	three Full 4-row hollow frame structural frame tubing	three Full 4-row hollow frame structural frame tubing	three Full 4-row hollow frame structural frame tubing
Frame depth	8' (2.44m)	8' (2.44m)	8' (2.44m)	8' (2.44m)	8' (2.44m)
Transport Width	18'3" (5.56 m)	19'8" (5.99 m)	17'6" (5.33 m)	21' (6.40 m)	22'3" (6.78 m)
Transport Height - maximum	11' (3.35 m)	13' (3.96 m)	13' (3.96 m)	15'9" (4.80 m)	16'2" (4.93 m)
Fixed Height Coulter	20''(508 mm) dia 400 lb (181 kg) trip force	20''(508 mm) dia 400 lb (181 kg) trip force	20''(508 mm) dia 400 lb (181 kg) trip force	20''(508 mm) dia 400 lb (181 kg) trip force	20''(508 mm) dia 400 lb (181 kg) trip force
Depth Control	- Hydraulic Series rephasing cylinders - Double Line Lock valve - Optional Quick-Adjust Depth control - Optional Variable Depth/Precision Control Valve
Wing Lift	Scissor-type system with hydraulic cylinders connected in parallel
Wheel Standards	- Single Axles - Triple-lip seals on 5000 lb. (2.268kg) hub assemblies
Tires, Main Frame	two 9.5L x 14 - 6 ply	four 9.5L x 14 - 6 ply	four 9.5L x 14 - 6 ply	four 9.5L x 14 - 6 ply	four 9.5 x 15LT - 8 ply
Inner Wings	-	-	-	-	four 7.60 x 15 - 4 ply
Outer Wings	two 7.50 x 14 - 4 ply	four 7.50 x 14 - 4 ply	four 7.50 x 14 - 4 ply	four 7.50 x 14 - 4 ply	two 9.5L x 15 - 6 ply
Stabilizer Wheels	two 7.50 x 14 - 4 ply, optional	two 7.50 x 14 - 4 ply, optional	two 7.50 x 14 - 4 ply, optional	two 7.50 x 14 - 4 ply, optional	two 7.60 x 15 - 4 ply, optional
