Specifications9000 I Series Air Carts

General Specifications


9000 Series Specifications


  • The 9950, L9950 and 91300 tanks have a 49/18/11/23 ratio, optimized for one-pass Producers using all dry products.
  • The 9650 and L9650 have a 30/20/20/30 ratio, optimized for Producers using dry fertilizer combined with liquid or anhydrous fertilizer.
Expand to access detailed product specifications.

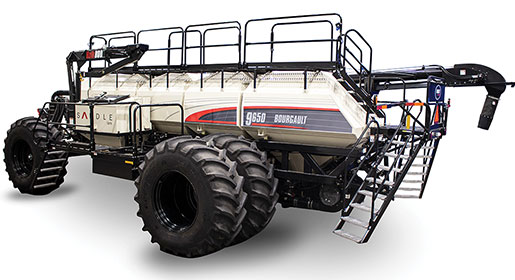

MODEL 91300 9950 9650 L9950 L9650
Total Volume (litres) 45,810 33,470 22,900 33,470 22,900
Tank 1 22,380 16,390 6,870 7,750 6,870
Tank 2 8,100 5,810 4,580 3,520 4,580
Tank 3 4,930 3,520 4,580 5,810 4,580
Tank 4 10,400 7,750 6,870 16,390 6,870
Saddle Tank (opt) 1,550 1,550 1,550 1,550 1,550
Height - Trans Empty 4.5m 4.1m 3.7m 4.1m 3.7m
Field Empty 5.4m 5m 4.5m 5m 4.5m
Width - Sgl Rear N/A N/A 5.5m N/A N/A
Dual Rear 6.4m 6.4m 6.4m 6.4m 6.4m
Tire Spacing - Front Sgl N/A 3.9m 3.9m N/A N/A
Front Inner Dual 3.4m 3.4m 3.4m N/A N/A
Front Outer Dual 5.3m 5.3m 5.3m N/A N/A
Tire Spacing - Rear Sgl N/A N/A 3.5m N/A 3.0m
Rear Inner Dual 3.3m 3.3m 3.3m 3.3m 3.3m
Rear Outer Dual 5.5m 5.5m 5.5m 5.5m 5.5m
Length Wheelbase 7.0m 7.0m 6.7m N/A N/A
Overall Length 16.9m 14.9m 14.9m 13.5m 13.5m
Front to Rear Hitch N/A N/A N/A 12.0m 12.0m
Front Hitch to Axle N/A N/A N/A 9.2m 9.1m
Weight - Empty* (kg) 22,950 19,450 17,640 17,500 15,950
Hitch Weight Empty (kg) N/A N/A N/A 2,090 1,910
Hitch Weight Max** (kg) N/A N/A N/A 5,000 4,730
* 9650 & L9650 available with optional 3 meter tire spacing with high capacity single tires;
** Refers to a commonly equipped configuration (includes dual tires, conveyor, Auto Section Control, Saddle Tank™ with Platform, surge brakes);
*** Max hitch weight is calculated using tanks 1 to 5 being filled with 65, 75, 75, 75, & 70 lb/bu density product respectively.
Read More



Air Cart Fan Requirements


Triple Shoot Fan Configuration - 9000 Series Air Seeder

Hydraulic Requirements & Recommendations

  • Minimum operating pressure of 2,900 psi.
  • Recommended operating pressure of 3,100 psi.
  • Hydraulic flow requirements are dependent on type of air cart fan selected.

Minimum Fan Speed Requirements

Each air cart is equipped with a Minimum Fan Speed Chart Manual to identify the best starting point for specific products.

Hydraulic Recommendations

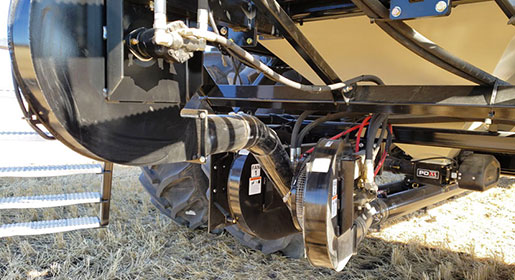

Leading 9000 Series Fan Configuration

When determining the fan option that will best suit your requirements, consider:

  • drill size and spacing;
  • typical seeding speed and maximum expected product rates;
  • hydraulic requirements of the air drill paired with the air cart;
  • hydraulic capacity of the tractor.

The High-Capacity Fan is recommended if selecting an air drill equipped with an 8 or 10 port primary manifold.

  • Is also an option for the TriMax™ seed line if the drill is equipped with 10-port primary manifolds.
  • Provides the air capacity to deliver typical to high rates for large scale drills seeding at typical seeding speed.
  • The fan rotor is 3½" wide and is equipped with a 16 cc hydraulic motor that can achieve up to 6,000 rpm.
  • To achieve maximum performance and reduce possible coupler failures, ¾" hydraulic couplers are required.

The High-Speed Fan is recommended for 60' and larger drills equipped with an 6 or 8-port primary manifold.

  • Available for the third product line in a TriMax™ Triple-Shoot configuration.
  • The fan rotor is 2½" wide and is equipped with a 12 cc hydraulic motor that is able to achieve up to 6,000 rpm.
  • To achieve maximum performance and reduce possible coupler failures, ¾" hydraulic couplers are required.

The High-Pressure Fan is recommended for the 3420 ParaLink Hoe Drill™, 3330SE-86 or 3335QDA-86 PHD™ on 10" and 12" spacing and the 3720-70 or 3820-70 PCD™ on 10" spacing.

  • The High-Pressure Fan is equipped with a large back swept rotor fitted with a 19 cc hydraulic motor.
  • To achieve maximum performance, units equipped with the High-Pressure Fan have 1" hydraulic lines across the drill and air cart and ¾" hydraulic couplers.

The Regular Fan is only available on the 8000 Series Air Cart, or on the 6" seed line of a TriMax™ Distribution System on the 9000 I Series Air Cart.



Fan Configuration Minimum Recommended
Single, Regular* 34L/min (9 gpm) 49L/min (13 gpm)
Single HIGH SPEED 56L/min (15 gpm) 76L/min (20 gpm)
Single HIGH CAPACITY 83L/min (22 gpm) 99L/min (26 gpm)
Single HIGH PRESSURE 90L/min (25 gpm) 112L/min (30 gpm)
Dual HIGH SPD 112L/min (30 gpm) 152L/min (40 gpm)
Dual HIGH CAP 166L/min (44 gpm) 198 L/min (52 gpm)
HIGH SPD & HIGH PRESS 152L/min (40 gpm) 180L/min (50 gpm)
HIGH SPD & HIGH CAP 139L/min (37 gpm) 175L/min (46 gpm)
HIGH CAP & HIGH PRESS 179L/min (47 gpm) 179L/min (47 gpm)

* - 5,000 rpm max.

Recommended Hydraulic Flow Requirements

When operating independent seed drills, hydraulic flow requirements are highest when turning on the headlands. The recommended flow listed in the chart above allows the seeding system to be raised and lowered within two headlands. It should be noted that the recommended fan requirements are for the maximum operational speed (rpm) of the fan.

Minimum Hydraulic Flow Requirements

If the recommended values cannot be achieved, minimum flow will provide adequate performance in most instances. If the hydraulic flow is less than the recommended, the fans may slow down and the openers may lift slowly in the headlands. This may result in the requirement for three headlands. In typical operating conditions, one or both fans are operating at less than maximum output levels, which will reduce hydraulic requirements.

Regardless of fan selection, the use of ¾" hydraulic couplers will maximize fan performance. Avoid costly performance reductions by minimizing oil flow restrictions across the entire system.

Hydraulic Pressure Drop Off


With many tractors, maximum hydraulic flow drops off sharply prior to maximum operating pressure. By setting the tractor to a pressure setting of 3100 psi the hydraulic flow will be near the rated output at the maximum operating pressure.

Hydraulic Recommendations for Air Drills


It is important to consider the hydraulic requirements of both the drill and air seeder to ensure your tractor's hydraulics are up to the task.

Go to PHD™ Specifications ParaLink Hoe Drill™ Specifications
Go to 3720 PCD™ Specifications 3720 Paralink Coulter Drill™ Specifications Go to 3820 PCD™ Specifications 3820 Paralink Coulter Drill™ Specifications

Minimum Fan Speed Requirements


The Bourgault Customer Service Center provides links to these same manuals in PDF format.

Go to Minimum Fan Speed Charts Minimum Fan Speed Charts Page (Customer Service Section)
Read More
